OEM 2D Barcode Engine » fixed Mount Barcode Reader: RT220

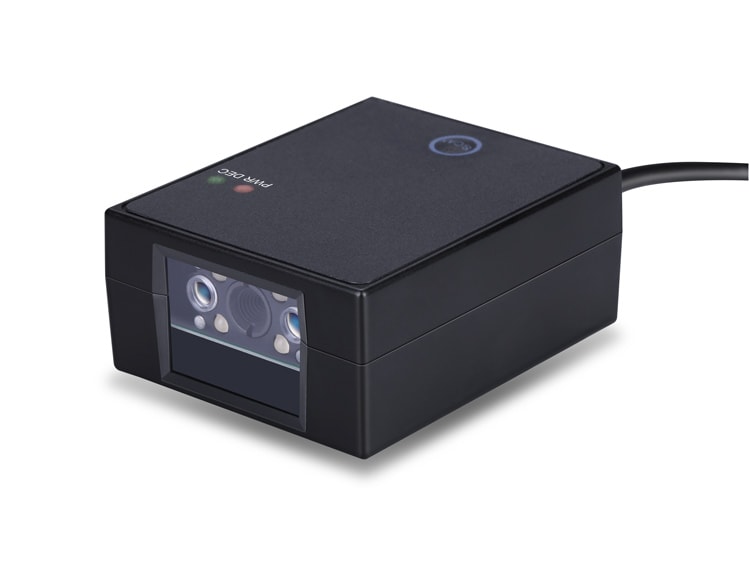

The RT220 is a fixed mount type 2d barcode engine,  with M2 screw holes, USB HID-KBW, USB virtual com or RS232 interface, it can be integrated inside all  kinds of self-service kiosks and terminals. It readable 1d and 2d bar codes (QR code, Data matrix code, pdf417 code, Aztec code) from paper or phone screen.



  • Compact, easy to be embedded / integrated
  • USB or RS232 interface directly, no need to pay much time on system integration program
  • Support most of 1D/2D code decoding
  • With high performance processing chip inside, it is outstanding in high speed decode excellent performance in code reading from phone screen
  • Easy to be programmed, support firmware upgrade
  • Flexible with customization

Video Demo



  • Description
  • Tech Specs
  •

    OEM 2D Barcode Engine » fixed Mount Barcode Reader: RT220

    For some of our customers, their device’s space is not so limited, and they do not want to pay much time to do the program of the integration of their system with our barcode scan engine RT200 by its UART TTL signals.So here we developed this new module RT220!

    The RT220 with RT200 barcode scan engine inside, but with USB or RT232 interface output directly (and not via the evaluation kit board) and just with a small housing added, and only a little bigger than RT200.This greatly facilitate the integration work and can make your integration so easy than never before.

    Based on state-of the-art CMOS technology & advanced image processing and decoding technology , RT220 is a high performance OEM 2D barcode scan engine, it can read poorly printed 1D/2D bar code , and outstanding especially for reading 1D/2D bar codes from mobile phone screen, laptop screen, tablet computer screen like Ipad screen.

    As an embedded module, it’s compact designed and can be widely used for data collection terminals, kiosks, robotic automation, medical instruments and countless other applications, this is your ideal choice for simple embedded, high-performance data collection application.Outstanding in user friendly, with USB or RS232 interface directly, simple integration.



     Configuration Tool Video Demo For RT220



    Integration

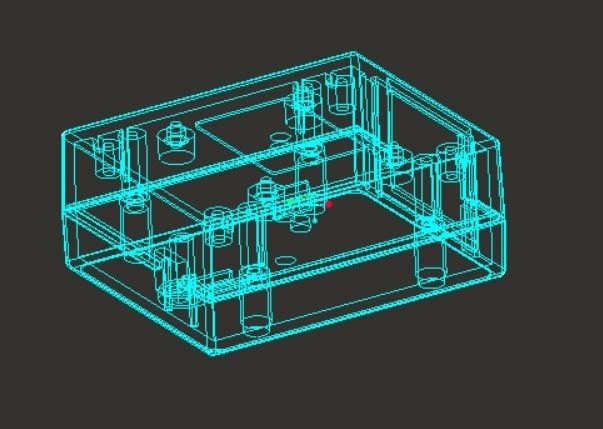

    We provide 3D Drawing for your easy integration design, please contact our people to get the documents.



    Integration Accessories

    We provide the screws together with product in order to facilitate your  integration.



    Mechanical



    Dimensions (LxWxH)

    55mm×45mm×24mm.

    Weight

    75 g

    Electrical



    Input Voltage

    3.3 VDC

    Operating Power

    0.99 W (300mA @ 3.3 VDC)

    Standby Power

    0.221 W (70mA @ 3.3VDC)

    Host System Interfaces

    USB virtual COM(Windows OS) , USB-HID, RS232

    LED class

    EN62471:2008

    Electromagnetic compatibility

    EN 55022,EN55024,EN 60950-1

    Environmental



    Operating Temperature

    -5°C to 45°C

    Storage Temperature

    -40°C to 60°C

    Humidity

    5% to 95% relative humidity, non-condensing

    Drop

    withstand 1.0 m drops to concrete on each of

    the faces

    Light Levels

    0 to 100,000 lux

    Scan Performance



    Scan Pattern

    Area Image

    Optical Resolution

    752*480 pixels

    Rotational Sensitivity

    Omnidirectional 360°@ 45°(Horizontal), 30°(Vertical)

    Pitch/Skew Tolerance

    60° @ 0°Roll and 0°Pitch

    Symbol Contrast

    25% minimum reflectance difference

    Warranty

    1 year factory warranty

    Decode Capability

    1D: Code 128, EAN-13,EAN-8,Code39,,etc.

    2D: PDF417,QR Code, Data Matrix,etc.





    Not suitable? Choose the suitable OEM 2d barcode engine for your project

    ModelsiN1RT218-ERRT218-SDRT218-SRRT214RT214BRT214CRT830iRT830i-BRT203RT206
    Read 2D and QR CodesYesYesYesYesYesYesYesYesYesYesYes
    Read From Paper and Phone ScreenYesYesYesYesYesYesYesYesYesYesYes
    Read Maxicode & AztecYesYesYesYesNoNoNoYesNoYesNo
    Depth of FieldMediumFarNearMediumMediumMediumMediumNearNearMediumMedium
    Field of ViewNormalNormalNormalNormalNormalNormalNormallargerLargerNormalNormal
    AimerLaserLaserLaserLaserLEDLEDLEDNo needNo needLEDLED
    Ultra-small & Compact designBigYesYesYesYesNormalBigBigBigBigNormal
    Compatible with Arduino via UART/ TTL-232 Board YesYesYesYesYes YesYesYesYesYesYes
    Compatible with Arduino via USB EVK Board YesYesYesYesYesYesYesYesYesYesYes
    Compatible with Raspberry Pi Via USB EVK BoardYesYesYesYesYesYesYesYesYesYesYes



    Contact Us to Get A Sample To Test
