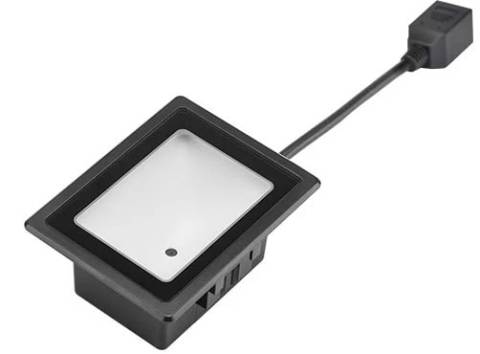

Bus & Metro station 2D barcode scanner-RT820

blank

Bus & Metro station 2d barcode scanner-RT820



The RT820 is a fast 2d and QR barcode scanner, which is specially designed for the Metro and bus system ticket bar code reading.
When we choose a 2d scanner for transportation like metro and bus station, usually we would consider:



1.Ensure passengers can scan their bar code and go through quickly, especially when the flow of people is large, and avoid long queues.

For this:

  • Firstly, the scanning speed must be fast enough.
  • Secondly, when users show their bar codes from different angles, from different distances, make sure the bar code can be read every time.
  • Thirdly, when the bar code is shown on the user's phone screen, the size of the phone screens would be various, and we need to make sure the barcode scanner can read the barcode from all of those different sizes of mobile phone screens.


2.Avoid failures as much as possible, reduce the cost of subsequent maintenance to the greatest extent and facilitate maintenance.



The  RT820 take considers these challenges and meet the above requirements quite well.

blank



Bus & Metro station 2d barcode scanner-RT820

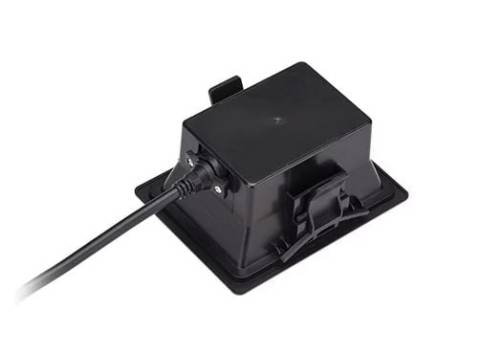

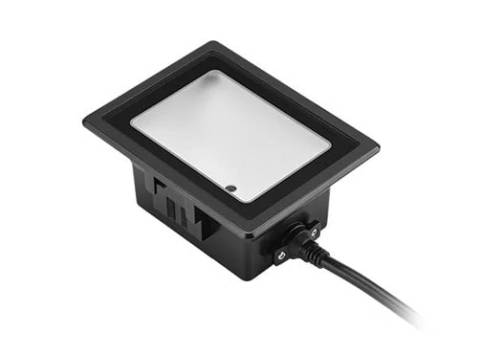

The RT820 is a RTscan’s new generation 2D barcode scanner with high speed, good reading performance, and protection class IP66.  Especially used for all kinds of access control projects like public bus, metro, etc,. It's not only high performance but also very cost-effective.

Readable most 1D barcode and 2D barcode such as QR code, Data Matrix, Code 93... and readable either from LCD screen or from paper.



blank

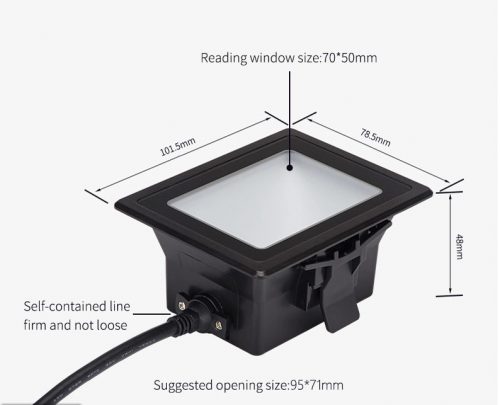

Large scanning window

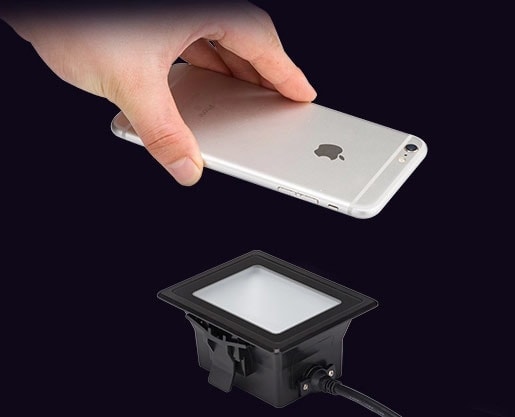

With a 70cm*50cm large scanning window, the bar code can be easily entered into the visible area of the scanner, so that the scanner can capture and read the code easily. In addition, whatever with a small size screen or big size screen, the scanner can read the code from the phone easily.





blank





blank





Excellent Bar Code Reading Performance



Scan 2d QR and bar codes from 360 degree as you want, 90ms per scan, reading distance from 0cm to 11cm.











Durable



IP66 industrial level, water-proof and dust-proof.



blank



blank

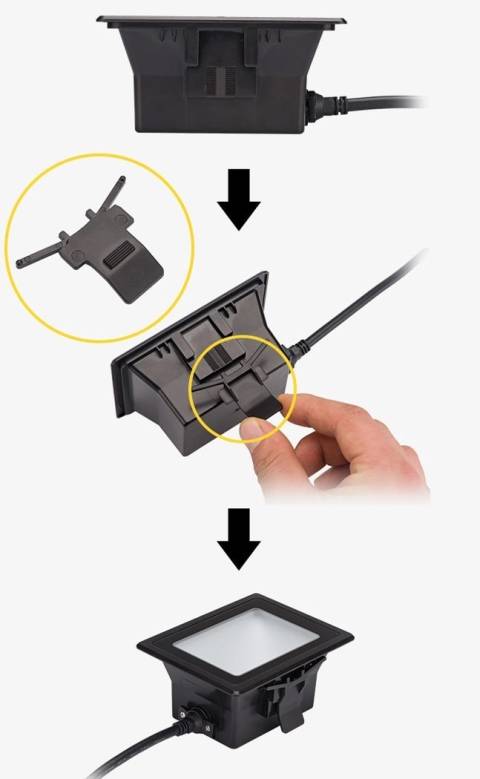

  Flexible design for easy installation and disassemble

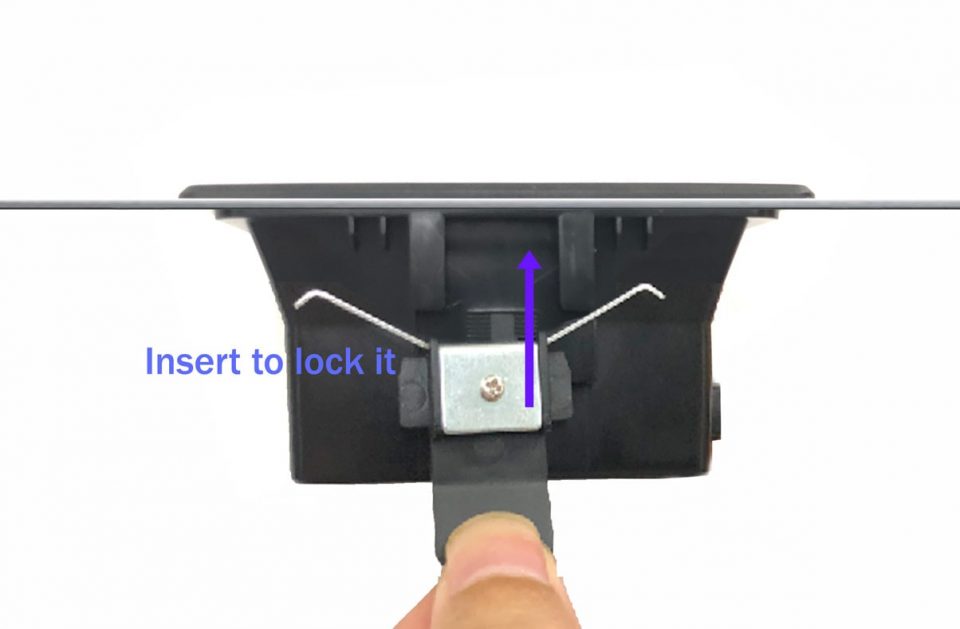

Use quick installation buckle on both sides, no screws required. Easy to install and disassemble.

blank



Integration

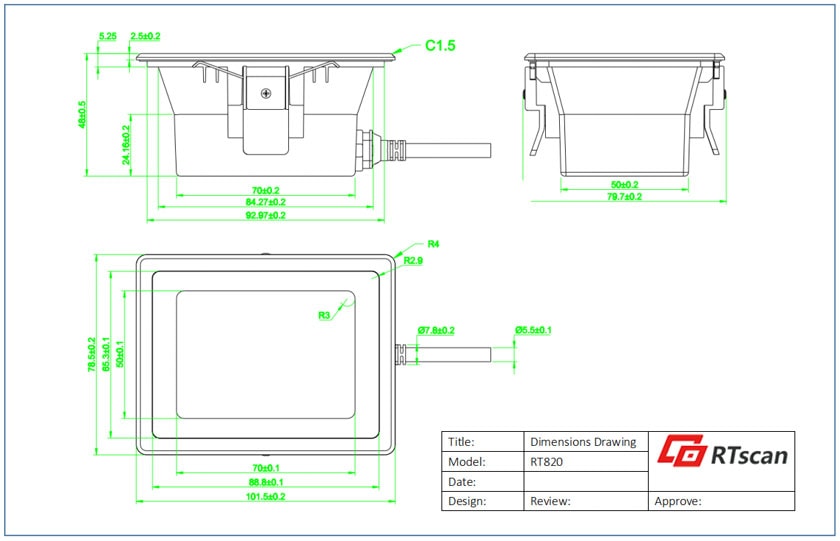

We provide Configuration Tool, User Manual,  and Dimension drawing which support your easy and quick integration work with your terminals.

Contact our salespeople to get the full documents.



blank







Tech Specs

Performance

Image Sensor

640 * 480 CMOS

Reading distance

0-11cm

Reading speed

30ms per scan

Scanning window

70*50mm

Symbologies

2D

QR Code, Data Matrix, etc.

1D

EAN-8, RSS_14, CODE_39, CODE_93, CODE_128, ITF,CODABAR, inverse code, image code, etc.

Scan Mode

Sense mode, detect and read automatically

Scan Angle

Roll: 360°,  Pitch: ±40°,  Skew:±30°

Field of View

Horizontal 77°,  Vertical60°

Min. Symbol Contrast

25%

Mechanical/

Electric

Interface

RS232;   USB-HID (HID-KBW or HID-POS)

Dimensions

101.5mm*78.5mm*48mm

Weight

156.8g

Material

ABS+tempered glass

Notification

Buzzer, green/red light

Operating Voltage

5V-12V

Current

159mA (Typically, 5V)

Environmental

Operating Temperature

-20℃ to 70℃

Storage Temperature

-40℃ to 80℃

Static Protection

EN 61000-4-2

Humidity

5% to 95% (non-condensing)

Ambient illuminance

0-80000Lux (not direct sunlight)

OS

Windows(XP\7\8\10), Linux, Android, Mac

Protection class

IP66 waterproof and dust-proof



Application:



Can be widely used for all kinds of access control applications.

  • Office victors access control
  • Building access control
  • Factory  access control
  • Museum
  • Tourist sites
  • School

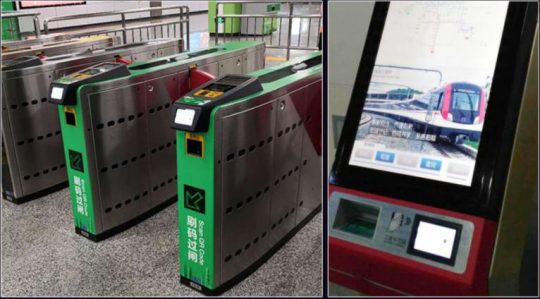

  • Bus & Metro station
