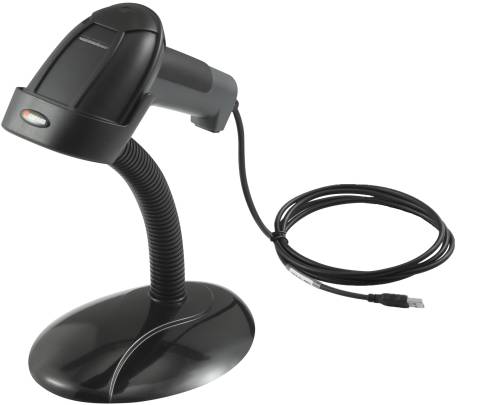

OCR Barcode Scanner: Handheld MRZ Reader: RT302

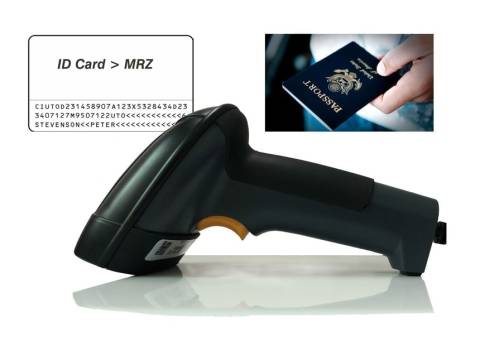

The RT302 is a handheld MRZ reader and barcode scanner, it can read OCR-B MRZ ( Machine Readable Zone) from ID card, driver's license, passport, or read 1d and 2d big size PDF417 code from ID card or driver's license.

Features

  • OCR-B MRZ reading from ID Card, passport
  • Read big size PDF417 from ID Card
  • Manual  trigger or automatically detect and read
  • Automatic Exposure Control (AEC)
Contact Us Now!

  • Description
  • Tech Specs

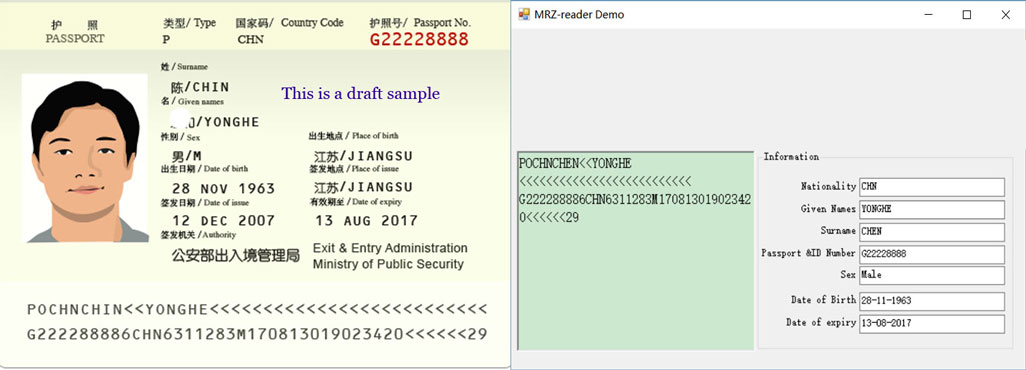

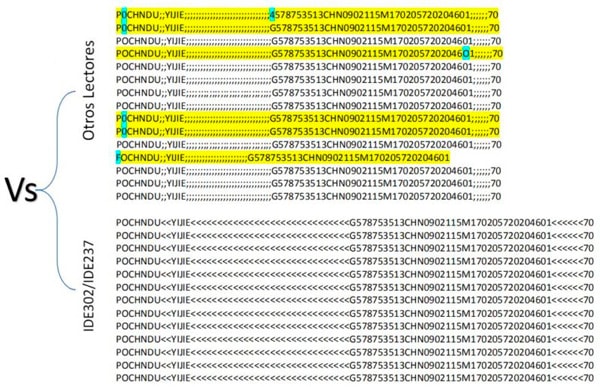

  • ♦     OCR-B MRZ reading

    Read OCR-B of MRZ ( machine readable zone)
    From passport , ID card, driver’s license

    ♦     Read big size PDF417 from ID Card

    With 1280*800 high resolution imager, the RT302 readable those big size and high density PDF417 code from ID card / driver’ license, e.g: ID of Colombia, El Salvador, Paraguay, Nicaragua, Panama...

    ♦     IR/Light Automatic Trigger

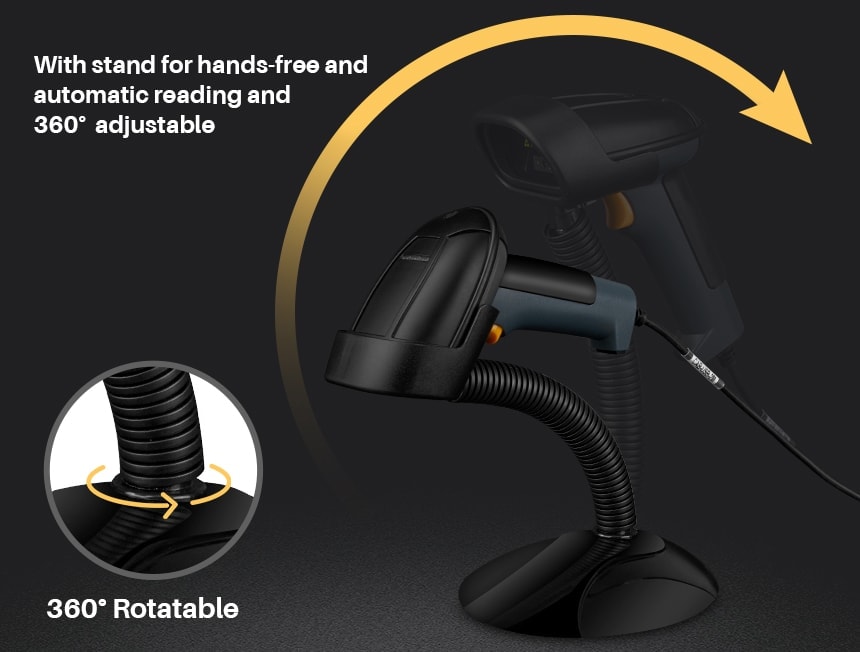

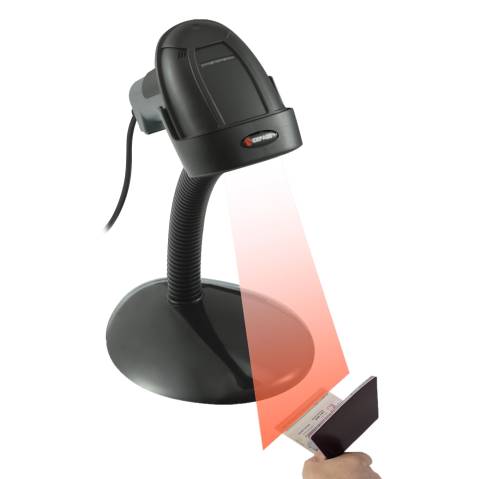

    The RT302 support both manual trigger mode and automatic trigger mode. For automatic mode, the combination of IR sensor and light sensor exhibits an improved sensitivity in activating the scanner to scan bar codes as they are presented, to achieve higher throughput and productivity.

    ♦     Automatic Exposure Control (AEC)

    The sensor in the RT302 automatically adjusts the supplementary lighting duration based on the light reflected off bar code.

    Performance

    Image Sensor

    1280 * 800 CMOS

    Illumination

    Aiming

    White LED

    Green LED

    Symbologies

    2D

    PDF417, QR Code, Data Matrix,

    AZTEC, CSC, Maxicode,

    Micro QR, Micro PDF417, GM ,

    Code One, etc.

    1D

    EAN-13, EAN-8, UPC-A, UPC-E, Code

    128, Code 39, Codabar, UCC/EAN

    128, RSS, ITF, ITF-14, ITF6, Standard

    25, Matrix 25, COOP 25, Industrial

    25, Plessey, MSI Plessey, Code 11,

    Code 93, Code 49, Code 16K, etc.

    OCR-B

    Machine readable passports (MRP) : 2 lines of 44 characters

    (Read distance: 15cm-25cm)

    Machine readable visas (MRV): 2 lines 44 characters, 2 lines 36 characters

    (Read distance: 15cm-25cm)

    Travel documents: 3 lines of 30 characters

    (Read distance: 10cm-20cm)

    Resolution

    ≥3mil  (differ from different type bar codes)

    Typical Depth of Field

    EAN-13

    55-360mm (13mil)

    Code 39

    70-180mm (5mil)

    PDF417

    55-160mm (6.7mil)

    Data Matrix

    50-170mm (10mil)

    QR Code

    40-210mm (15mil)

    Scan Mode

    Sense mode (automatic mode), Continuous mode, Manual trigger mode, Pulse mode

    Scan Angle

    Roll: 360°,  Pitch: ±55°,  Skew:±55°

    Field of View

    Horizontal 51°,  Vertical 32°

    Min. Symbol Contrast

    25%

    Mechanical/

    Electric

    Interface

    RS-232, USB

    Dimensions

    180mm x 80mm x 90mm

    Weight

    200g

    Notification

    Beep, LED indicator

    Rated Power Consumption

    1622 mW (typical)

    Operating Voltage

    5VDC±5%

    Current @ 5VDC

    Operating

    276.8mA (typical), 322.7mA (max.)

    Standby

    83.3mA

    Environmental

    Operating Temperature

    -20℃ to 60℃ (-4°F to 140°F)

    Storage Temperature

    -40℃ to 70℃ (-40°F to 158°F)

    Humidity

    5% to 95% (non-condensing)

    ESD

    ±14 kV (air discharge),  ±8 kV (direct discharge)





    Environmental

    Cable

    USB

    Used to connect the RT302 to a host device.

    RS-232

    Used to connect the RT302 to a host device.

    Power Adapter

    DC 5V adapter to power the RT302 with RS-232 cable.
