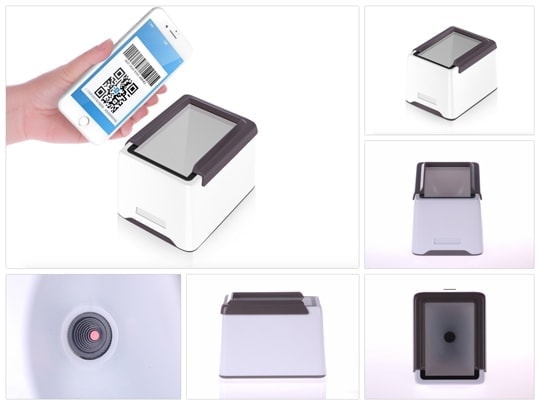

Large Scanning Window Hands-free 2d Bar Code Scanner: RT850
RTscan’s 2017 new hands-free 2D bar code scanner with large scanning window for desktop use.
It is designed for 2D QR Barcode Mobile Payment & Mobile Ticketing Barcode Reading.
Features
• Large scanning window, can scan a bar code that cover full screen of an iPhone 6.
• Hands-free and automatic scanning operation
• Desktop design, can be used in all kinds of desktop scanning applications
• Suitable for mobile barcode scanning/ cellphone payment/ e-ticket payment/e-coupon payment.
• Scan bar codes from paper, phone and computer screen
Video Demo
Application
2D QR Barcode Mobile Payment & Mobile Ticketing
Restaurant, hotel, bars, movie stores, banks, airport, bus & train station, medical & health care for payment, paper or e-ticket scanning.
Introduction
Support most of 1D/2D bar code scanning: 1D code like Code11, Code39, Code93, Code128, and mainstream 2D code like Data Matrix, QR, micro QR, PDF417, micro PDF417, Aztec Codes.
Desktop used design, it can be used in all kinds of desktop service, such as supermarket cashier, self-service order, etc.
With 90mm×63mm large area scanning window, it makes the RT850 very user-friendly. It can capture and read bar code from cellphone or paper very easily, thus we do not need to try hard to find the suitable position for bar code scanning. RT850 can scan 1D, 2D bar codes from paper, mobile phones and computers.
RT850 is a very ideal 2D bar code scanner for application of desktop use. For example, it can be used in supermarket, restaurant, hotel, bars, movie stores banks, airport, bus/train station for payment, paper or e-ticket scanning. It can also be used in medical&health care industry.
Similar Products
Technical Specification
Mechanical |
|
Dimensions (LxWxH) | 136mm×109mm×92mm |
Weight | 237 g |
Scanning window | 90cm*63cm |
Host Interfaces | USB virtual COM , USB-HID, RS232 |
Scan Performance |
|
Scan Pattern | Area Image |
Optical Resolution | 640x480 |
Scan Angle | Area-Imaging/ 360° |
Symbol Contrast | ≥ 30% |
Depth of field | 0mm-100mm (different for different size & density of the bar codes) |
Roll, Pitch, Skew | 360°, ±60°, ±40° |
Decode Capability | 1D: Code 128, EAN-13, EAN-8, Code39, GS1, UPC-A, UPC-C, Code11, Code93, Codebar, etc. 2D: PDF417, QR Code, Data Matrix, GM Code, Aztec, Micro QR, Micro PDF417, etc. |
|
|
Electrical |
|
Input Voltage | 5 V |
Operating Power | 280mA |
Standby Power | 80mA |
LED class | EN62471:2008 |
Electromagnetic compatibility | EN55022,EN55024 |
|
|
Environmental | |
Operating Temperature | -5°C to 45°C |
Storage Temperature | -40°C to 60°C |
Humidity | 5% to 95% relative humidity, non-condensing |
Light Levels | 0 to 100,000 lux |
