Super Fast Hand-free 2D and

QR Bar Code Scanner for mobile payment : RT830A



Specification

✔️1D&2D barcode (QR,DM, PDF417 etc)

✔️Automatic reading & Command trigger

✔️Windows, Linux, Android, Arduino, Raspberry PI

Connection

🔌 RS232 interface

⌨️ USB (HID & COM)

Features

🚀 Fast speed ( up to 2m/s) to read moving barcode

📅 It reads well special code reading like Aztec, Maxicode etc

🔎Reading well even in dim illumination from phone screen

📱 Application : Bus and Metro system, turnstile and Kiosk etc

(✹Optional)

Contact Us Now!









Slide
PlayPlay
RT830A-2
fixed-mount-2d-qr-reader-rt830a

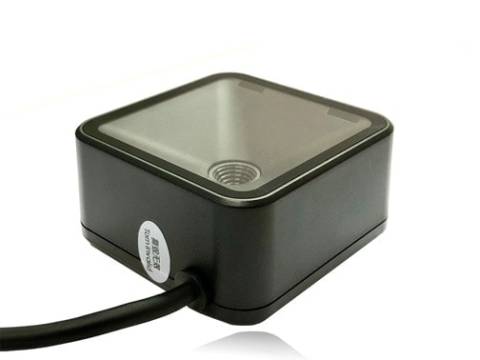

fixed-mount-2d-qr-scanner-rt830a
RT830A-1
Slide
RT830A-2
fixed-mount-2d-qr-reader-rt830a
fixed-mount-2d-qr-scanner-rt830a
RT830A-1
previous arrow
next arrow

Video Demo





Application

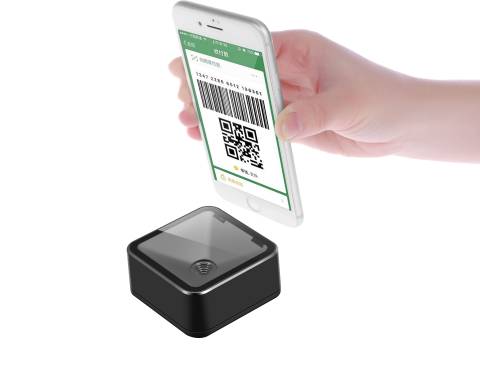

2D QR Bar Code Scanner For Mobile Payment & Mobile Ticketing

Restaurant, hotel, bars, movie stores,  banks, airport, bus & train station, medical & health care for payment, paper or e-ticket 2d and QR bar code scanning.



Introduction








RT830A is a hand-free 2D and QR bar code scanner released in 2017. It is suitable for both desktop and embedded use.



It is outstanding for its high-speed motion tolerance (Up to 2 meters per second) and capacity to decode almost all types of bar codes, including Aztec, MaxiCode, QR, Data Matrix, PDF417, EAN code, etc. It has been optimized for reading bar codes from mobile phone.



Support presentation mode which detects and reads bar code automatically with USB-HID, USB-Virtual Com and RS232 interfaces.

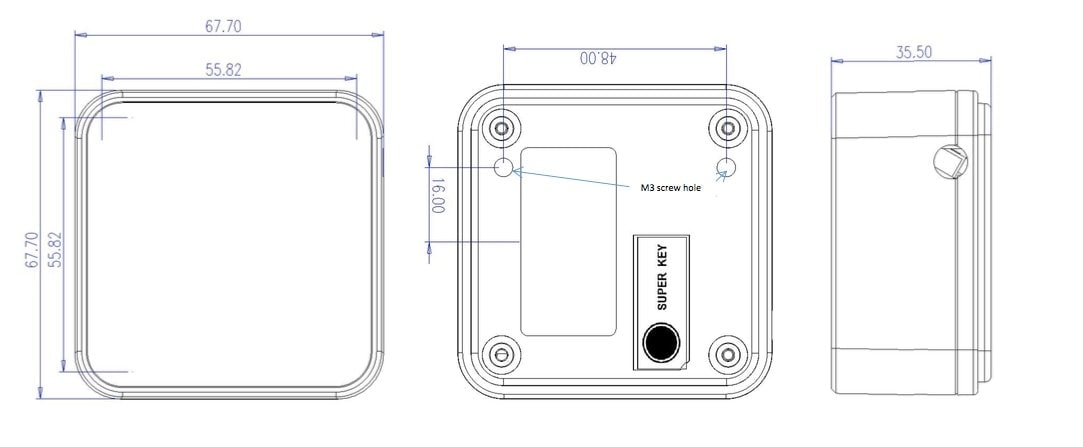

Size

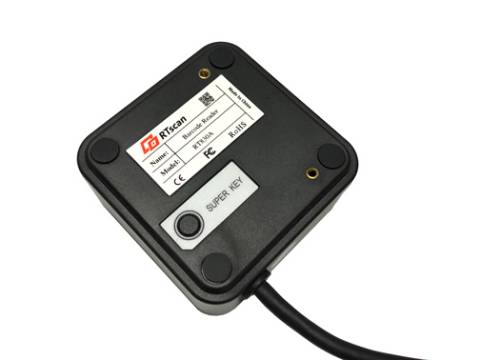

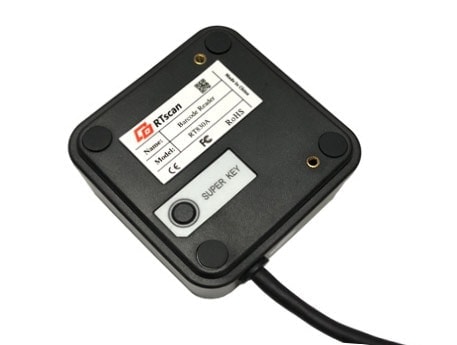

Usually, the RT830A is used in desktop,  but you can also fix/embed it in your terminal: there are 2 M3 screws holes by which you can fix it.







Program The Bar Code Scanner RT830A



The bar code scanner RT830A is programable, and we provide rich programming codes for you to do many kinds of settings / user-define.

Please ask our sales people for detailed documents.





Technical Specification

Mechanical



Dimensions (LxWxH)

67mm x 67mm x 35mm

Weight

145.5g

Host System Interfaces

USB virtual COM , USB-HID, RS232

Scan Performance



Scan Pattern

Area Image

Optical Resolution

752*480 pixels

Light Source

illumination: 617nm LE

Field of View

115°(H)x 90°(V)

Scan Angle

360° Area-imaging

Symbol Contrast

20% minimum reflectance difference

Roll, Pitch, Skew

360°,±65°, ±60°

Decode Capability

1D: Code 128, EAN-13, EAN-8, Code39, etc.

2D: QR Code, Micro QR, Aztec, PDF417, Micro PDF417, Data Matrix, Maxicode , etc

Depth of field

5MIL:0mm-10mm

13MIL:0mm-30mm





Electrical



Input Voltage

5 VDC

Current

220mA

Light Source

illumination: 6500K LED





Environmental



Operating Temperature

0°C to 50°C

Storage Temperature

-40°C to 70°C

Humidity

0% to 95%, non-condensing

Drop

Designed to withstand 1.5 m drop

Ambient Light Immunity

up to 100,000 lux

Contact Us Now To Ask A Sample For Test:
