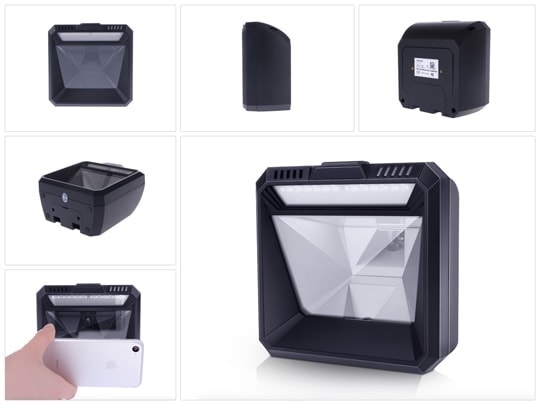

High Speed Hand-free 2D Bar Code reader: RT860



RTscan’s new generation hand-free and super-fast desktop 2D bar code reader with large scanning window in 2018.

RT860 is a very ideal 2D bar code reader for applications like: supermarket, restaurant, hotel, bars, movie stores, banks, airport, bus/train station, hospital.

Its high speed makes it outstanding when there are lots of people in line in supermarkets, airports, or transport ticket sales.

Features

• Super large scan window
• Super high scanning speed: around 120 frame per second
• Hand-free and automatic scanning operation
• Support almost all types 1D & 2D bar codes, including QR, Data Matrix, PDF417, Aztec, etc.
• Excellent performance for both paper bar code and phone screen bar code reading.



blank

Video Demo



Introduction

With large area scanning window, super-fast scanning speed and optimized sensing technology, RT860 can capture and read bar code very easily, no matter read from phone screen or products package. RT860 can read most general 1D, 2D bar code like Aztec, QR, Data Matrix code, EAN, code39, etc. It’s designed for hand free use, place the bar code near to the scanning window, the RT860 will detect and decode the bar code automatically and quickly.



RT860 is a very ideal 2D bar code reader for application of desktop use. For example: supermarket, restaurant, hotel, bars, movie stores, banks, airport, bus/train station, hospital.



If you need a 2D bar code reader that can read bar codes very quickly so that customers or guests do not need to wait for a long time (like in supermarket or airport), RT860 will be your very good choice!

blankblank

You May Also Be Interested In



  • blank

    2D QR And Barcode Reader-RT880

    2D QR And Barcode Reader-RT880

    Details
  • blank

    Wireless WiFi Barcode Scanner RTX200

    Wireless WiFi Barcode Scanner RTX200

    Details
  • blank

    Hands-free Bar Code Scanner RT830A

    Hands-free Bar Code Scanner RT830A

    Details

blank

Embed / Fix



The RT860 with design for embedded use: if you want to fix it in the check-out terminal in super-market or others retails application, then you can refer to this drawing for integration.





Program The Barcode Reader RT860



The barcode reader RT860 is programable, and we provide rich programming codes for you to do many kinds of settings / user-define.

Please ask our sales people for detailed documents.







blank

Technical Specification

Mechanical



Dimensions (LxWxH)

152mm x 149mm x 80mm

Weight

376g

Host System Interfaces

USB, RS232





Scan Performance



Scan Pattern

Area Imaging

Reading Precision

≥ 5mil

Field of View:

45°(H)x 35° (V)

Roll / Pitch / Yaw

360°, ±65°, ±60°

Motion tolerance

Up to 60cm per second

Print contrast

≥ 25%

Decode Symbologies

1D: UPC-A, UPC-E, EAN8, EAN13, ISSN, Telepen, China Post, Trioptic Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Code 32, Code 93, Code11, Matrix 2 of 5,



2D: QR, DataMatrix, PDF417, Aztec, Hanxin etc.





Electrical



Input Voltage

5 VDC

Current

500mA

Aiming& illumination

650nm LED





Environmental



Operating Temperature

0°C to 50°C

Storage Temperature

-40°C to 70°C

Humidity

0% to 95% relative humidity, non-condensing

Drop

Designed to withstand 1.5m(5’)drops

Ambient Light Immunity:

up to 100,000 Lux.





Decode Ranges



Symbol & Density

HD Focus

Code 39 (5 mil)

0mm-60mm

100%UPCA (13 mil)

0mm-200mm
