Barcode Scanners: USB Bar Code Scanner: RT600

blank

Barcode Scanners: USB QR Code Scanner: RT600

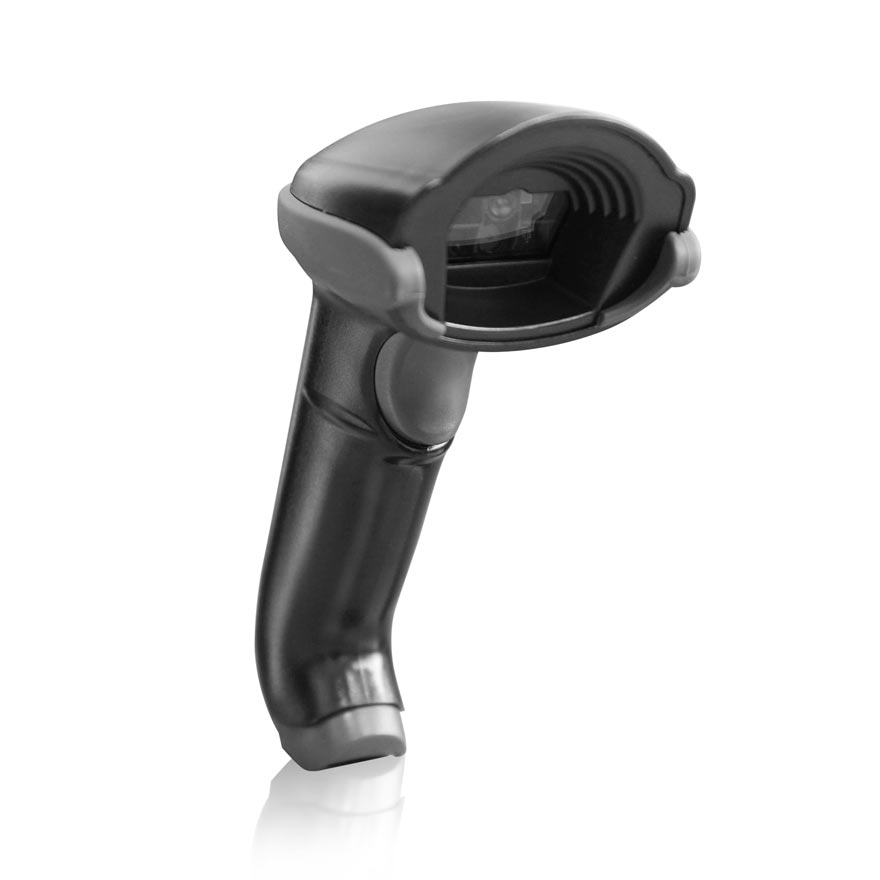

The RT600 is a high performance handheld 2D and QR code scanner, sensitive, fast and accurate, with USB- HID, USB-Virtual Com or RS232 interface. Readable 2d QR code, PDF417 code,  Aztec code, Datamatrix code ... either from cell phone displayer or from paper. If you need a handheld 2d barcode scanner for common purpose use, this is a very good and cost-effective choice. Click "send inquiry" button below to contact us now.



  • With large Angle image photoreceptor, readable either small size or big size barcode
  • Very sensitive, quick and accurate reading
  • USB-HID, USB-Virtual Com and RS232 interface
  • Antiknock design: withstand multiple falls to cement pavement from 1.8m height
  • Readable most of 2d and 1d bar codes, QR, PDF417, Aztec, Datamatrix...
  • Cost-effective: this is a hot sales scanner and with big volume production makes its cost is relatively lower and much cost-effective





blank



Send Inquiry

Video Demo

Read From Paper

Read From Mobile Phone Screen

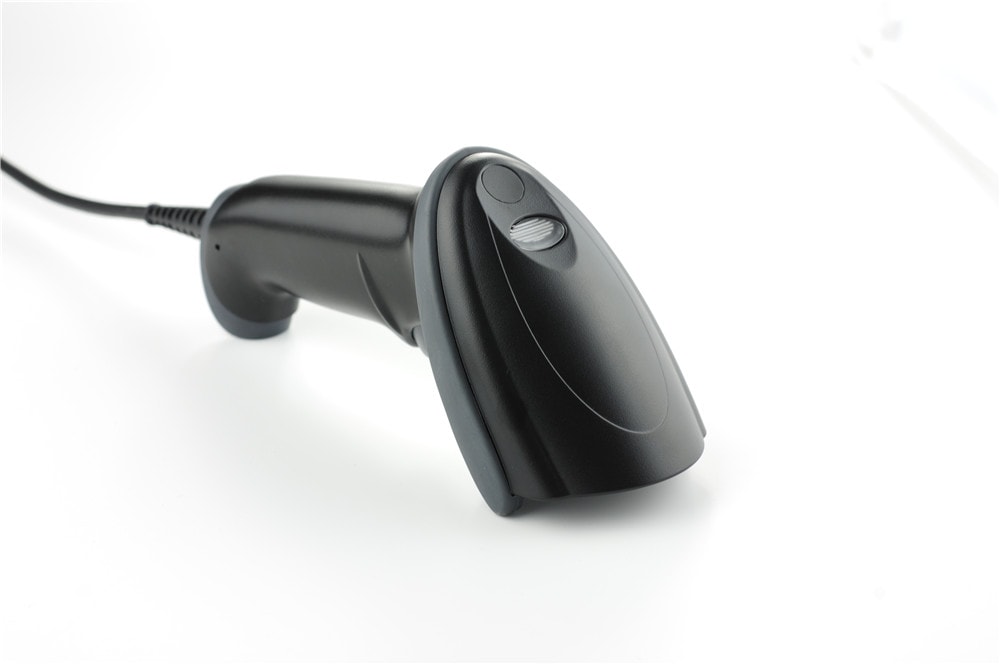

Handheld USB 2D and QR Code Scanner RT600



Support most of 1D/2D bar code scanning: 1D code like Code11, Code39, Code93, Code128, and mainstream 2D code like Data Matrix, QR, micro QR, PDF417, micro PDF417, Aztec Codes.

Desktop used design, it can be used in all kinds of desktop service, can scan 1D, 2D bar codes from paper, mobile phones and computers.

RT600 can be used in supermarket, restaurant, hotel, bars, movie stores banks, airport, bus/train station for payment, paper or e-ticket scanning, etc.



blank

blank



Elegant and User-friendly Design

blank

Technical Specification

Mechanical
Dimensions (LxWxH)170mm×105mm×72mm.
Weight178 g
Electrical
Input Voltage5 VDC
Operating Power2 W (400mA @ 5 VDC)
Standby Power0.8 W (160mA @ 5 VDC)
Host System InterfacesUSB Keyboard Wedge(HID), USB Virtual Com,  RS232
LED classClassl:IEC60825-1  IEC/EN62471:2006
Electromagnetic compatibilityFCC Part15 , ROHS
Environmental
Operating Temperature0°C to 40°C
Storage Temperature-40°C to 60°C
Humidity0% to 95% relative humidity, non-condensing
Dropwithstand 1.8 m drops to concrete on each of the faces
Light Levels0 to 100,000 lux

Scan Performance
Scan PatternArea Image
Optical Resolution0.30MEGA pixels
Scan AngleHorizontal 50°; Vertical: 20°
Symbol Contrast20% minimum reflectance difference
Pitch, Skew60°, 65°

Decode Capability

1D: UPC\EAN with supplementals\ Bookland EAN\

ISSN\ UCC Coupon Extended Code\ Code 128\

GS1-128\ ISBT 128\ Code 39\ Code 39 Full ASCII\

Trioptic Code 39\ Code 32\ Code 93\ Code 11\

Matrix 2 of 5\ interleaved 2 of 5\ Discrete 2 of 5\

Codabar\ MSI\ Chinese 2 of 5\ GSI DataBar Variants\

Korean 3 of 5\ ISBT Concat

2D: PDF417\ MicroPDF417\ Composite Codes\ TLC-39\ Data Matrix\ Maxicode\ QR code\ MicroQR\ Aztec

Warranty1 year factory warranty

Catalog Download

 lable

Handheld-2D-Bar-Code-Reader-RT600.pdf

1844 KB
