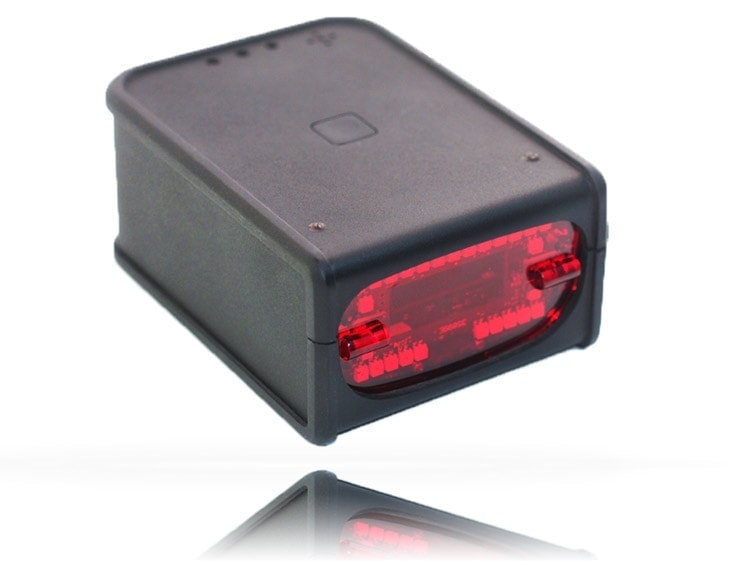

Kiosk OEM PDF417 Reader For PDF417 Code in ID Card or Driver's License or Others High Resolution Bar Codes

Model Number: RT301


  • Readable big size and high resolution bar codes
  • Readable PDF417 code from ID documents or driver’s license easily and quickly
  • Support automatically detect and read the bar code
  • Omnidirectional scanning , able to read all the standard one dimensional bar code and twodimensional bar code such as QR code,PDF417, micro PDF417, and Data Matrix,
  • Capable for reading big size bar code from long distance away
  • Fast, even faster than some of Honeywell barcode readers.
  • Accurate aiming and decoding
  • Support Windows , Andriod(power output need to >400mA)
  • Interface: USB HID, USB virtual COM emulation, RS232, RJ11, Mini USB
High resolution 2D and PDF417 reader for kiosk embedded use

Contact Us Now!

  • Description
  • Tech Specs
  • Catalog Download
  • Video Demo
  • If you are looking for a 2d and PDF417 reader for identification document for kiosk or desktop use,this barcode reader would be your good choice.


    It detects the barcode and reads it automatically, this free our hand and we don't need to trigger the scanning manually. This make it ideal for kiosk use.


    It can decode high density big size barcode, especially for ID card or driver's license,the PDF417 code is big and high density, a common bar code can not read this kind of code, but this reader can do it!


    Build in a high resolution industrial image sensor, this barcode reader can read the big size of code accurately and easily. Use this reader for your banking system, or for your access control system, the work become so simply than never before.

    We developed powerful interface for this barcode raeder,USB-HID, USB-COM emulation, RS232, RJ11, Mini USB,which meet all kinds of your system; at the same time, it support Windows and Android OS.



    Dimensions (LxWxH)

    104mm x 76mm x 49mm


    200 g

    Scan Performance


    Scan Pattern

    Area Image (838 x 640 pixel array)

    Optical Resolution

    1.30 MEGA pixels

    Motion Tolerance

    Up to 50 cm/s for 13 mil UPC at distance of 10cm

    Scan Angle

    Horizontal 50°; Vertical: 20°

    Symbol Contrast

    20% minimum difference



    Decode Capability

    1DCode39,Code93,Code 128,UPCEAN,

    Code 2 of 5Code11,Codabar,MSI Plessey,GS1 DataBar

    2DPDF417,QR Code,Aztec Code,Data Matrix



    Input Voltage

    5 VDC

    Operating Power

    2 W (400mA @ 5 VDC)

    Standby Power

    0.8 W (160mA @ 5 VDC)

    Host System Interfaces

    USB, Keyboard Wedge, RS232

    LED class

    Class l:IEC60825-1  EN60825-1

    Electromagnetic compatibility

    FCC Part15, IEC60825-1EN55022 Class B



    Operating Temperature

    0°C to 40°C

    Storage Temperature

    -40°C to 60°C


    0% to 95% relative humidity, non-condensing

    Environmental Sealing


    Light Levels

    0 to 100,000 lux
