OEM 2D and QR Barcode Scanner Module: RT214D

—Super Small and lower power consumption OEM 2d and QR barcode scanner module

The RT214D scanner module is designed to be super-compact, energy-efficient, and cost-effective. This makes it possible to fit almost all kinds of OEM-embedded uses for 1D/2D barcode reading: Medical equipment, Self-service devices, PDAs, tablets, notebooks, Bluetooth ring scanners, Bluetooth pocket scanners, etc.



Features

  • Low power consumption: 3.3VDC ± 5% * 170mA (typical during operation); Idle: 20mA.
  • Super compact design with decoder + imager integrated: 21(W) × 9.0(D) × 6.7(H) mm (max).

Certificate

  • CE、FCC、RoHS、REACH

Connection

  • TTL-232
  • USB EVK kit✹
  • RS232 EVK kit✹

(✹Optional)



Contact Us Now
Order Sample Now!



 Super Small OEM 2D and QR barcode scanner module

The RT214D is outstanding for its ultra-small design, low power consumption, and good performance for reading poorly printed 1D/ 2D bar codes, bar codes on the low-brightness LCD screen, and on-screen bar codes even if they are covered with protective film.

It's ideal for devices with small interior spaces, such as POS, PDA, or other portable devices, but it can also be used for big devices, such as kiosk terminals.



Operating Current (T=25°C), the Standby Current is only 20mA, a very low number among similar products.

Description

State

PEAK

RMS

Unit

Working Current



VDD=3.3V

435

170

mA

Standby Current

-

20

mA

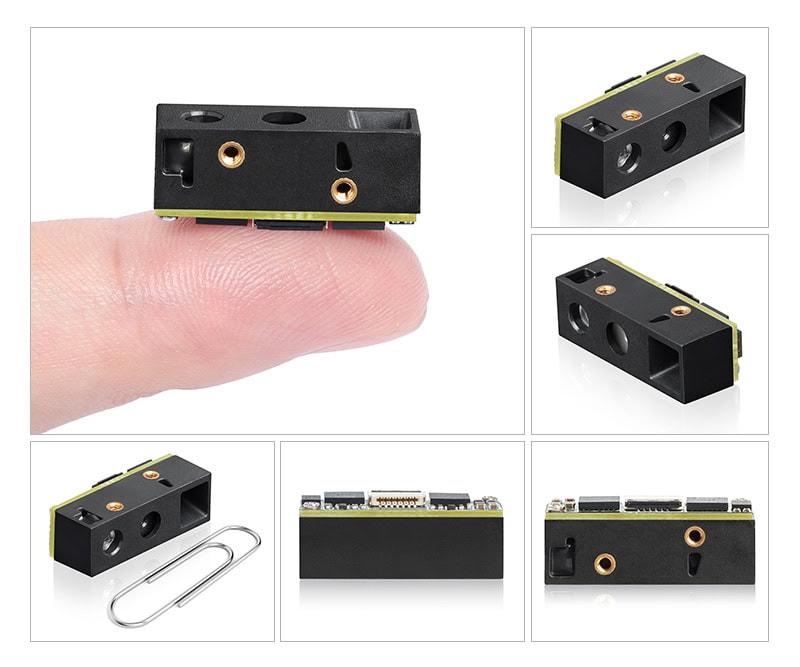

Its dimension is 21mm * 9mm*6.7mm,  which is very tiny & compact.







Video Performance Demo











Integration of the barcode scanner module

We provide 3D drawings and an integration guide to facilitate easy and quick integration work with your terminals. RTscan is also outstanding for its capacity and experience in technical support of integration work.

Feel free to contact our salespeople (sales@rtscan.net) for the complete documents or our technical team (support@rtscan.net) for technical support.









Integration Accessories



To facilitate our customer integration, we provide Screws, Flat cables, Connectors, USB/RS232 EVK (We also call it development kit board) and their schematic. But they are all optional, you can tell our sales people do you need them or not when you place order.







Control & configure the barcode scanner module with commands



For example, we can control the scanner reading/illumination by sending commands to the scanner. We provide a detailed introduction to explain the command control.  Feel free to ask our people for complete documents or technical support.

















Setting Codes Programming & Configuration



You can simply program/ set up the barcode scanner module by setting codes. Open the User manual and scan the setting codes directly from your device's screen. This is the most straightforward way to configure the scanner. Please ask our salespeople for the full user manual.











Solution

We also provide solutions if you need the barcode scanner module to work with Arduino or Raspberry Pi.

(Note: The below solutions are based on RT214, but not RT214D; their configuration codes and commands are all different, but you can reference them. If you need configuration codes and commands for RT214D, please ask our sales team )



  • Arduino Host Shield Barcode Scanner Module Solution

  • Raspberry Barcode Scanner Module Solution





  • Wiegand Barcode Scanner Module Solution

  • Arduino USB Host Barcode Scanner Module Solution





Tech Specs

Performance

Image Sensor

640 * 480 CMOS

Illumination

Aiming

White LED

Red LED 625nm

Symbologies

2D

PDF417, QR Code, Data Matrix, Aztec

1D

EAN-13, EAN-8, UPC-A, UPC-E, Code128, Code 39, Codabar, UCC/EAN
128, RSS, ITF-14, ITF6, Standard 2 of 5, Matrix 2 of 5, Industrial
2 of 5, Plessey, MSI Plessey, Code 11,Code 93, etc.

Resolution

≥3mil  (differ from different type bar codes)

Typical Depth of Field

EAN-13

65-350mm (13mil)

Code 39

45-160mm (5mil)

PDF417

50-125mm (6.7mil)

Data Matrix

45-130mm (10mil)

QR Code

30-170mm (15mil)

Scan Mode

Sense mode, Continuous mode, Command trigger

Scan Angle

Roll: 360°,  Pitch: ±60°,  Skew:±60°

Field of View

Horizontal 43°,  Vertical 33°

Min. Symbol Contrast

10%

Mechanical/

Electric

Interface

TTL-232 by itself; USB or RS232 via EVK board

Dimensions

21(W)×9.0(D)×6.7(H) mm (max.)

Weight

1.2g

Notification

Beep, LED indicator

Operating Voltage

3.3VDC + 5%

Current @ 3.3VDC

Operating : 170mA(typical);  Idle: 20mA

Environmental

Operating Temperature

-20℃ to 55℃

Storage Temperature

-40℃ to 70℃

Humidity

5% to 95% (non-condensing)

Accessories

(optional)

Development kit board (EVK) :

 It is equipped with a trigger button, beeper, RS232 interface, or USB interface (HID & COM).

Ask A Sample To Test Now!
