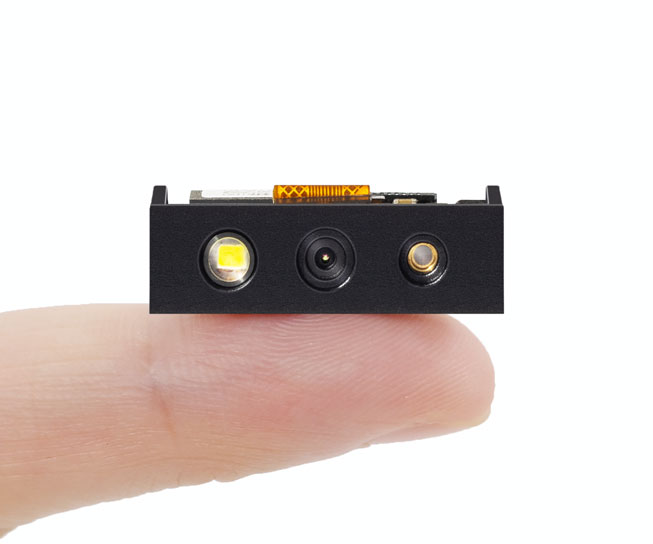

Small Barcode Scan Engine: RT218

Small OEM 2d and QR barcode scan engine. With a laser aimer, which is more accurate for barcode aiming.

To meet the different needs of different applications, RT218 includes four versions in terms of resolution and reading distance:

RT218-SR, Standard Range: The standard ranger scanner
RT218-ER, Extended Range: Able to read bar codes from a longer distance
RT218-SD, Short Distance: Able to read bar codes from a short distance
RT218-HD, High-Definition: It can read high-density bar codes

Features

  • Square & Cross Laser Aimer
  • Compact and Lightweight Design
  • Excellent Bar Code Reading Performance
  • Windows, Linux, Android, Arduino, Raspberry PI
  • Support most types of bar codes

Connection

  • TTL-232
  • USB EVK kit✹
  • RS232 EVK kit✹

(✹Optional)

Certificate

  • CE, FCC, RoHS, REACH, IEC 60825
Contact Us Now
Order Sample Now!



Small Barcode Scan Engine



The RT218 is outstanding at its super compact design, laser accurate aiming, and its excellent performance for decoding almost 1d&2d bar codes: QR codes, Aztec, Maxicode, EAN-13, EAN-8, UPC-A, UPC-E, Code128, Code 39, Codabar, UCC/EAN 128, RSS, ITF-14, ITF6,
Standard 2 of 5etc.

It is suitable for most applications: medical devices, lockers, shopping trolleys, vending machines, ATMs, Express cabinets, ticketing machines, portable terminals, tablets, etc.



RT218 Four Versions Available

Model NumberDescriptionExample
RT218-SRStandard Range version:
The standard range scan engine.
QR Code(20mil):
Readable distance: 35-230mm
RT218-ERExtended Range version:
Able to read bar codes
from a longer distance
QR Code(20mil):
Readable distance: 50-400mm
Code128(30mil): 200-1300mm
RT218-SDShort Distance version:
Able to read bar codes
from a short distance
Data Matrix (4*4mm):
Readable distance: 22-70mm
QR Code(4*4mm):18-75mm
RT218-HDHigh-Definition version:
It can read high density
bar codes
High-density bar code that is hard to read by usual scanners



Video demo









Features



Block
Compact and Lightweight Design

The miniature size, lightweight, and seamless integration of the imager and decoder board facilitate the integration of the barcode scan engine into a wide variety of equipment.

Read Poor Quality Bar Codes

Applied with the newest technology, this barcode scan engine can easily read poor-quality bar codes: damaged bar codes, low contrast bar codes, torn bar codes, warped or wrinkled bar codes.

Square & Cross aimer

With a square & cross aimer, users can accurately and easily point to the barcode and achieve quick reading. This makes a better user experience.

Excellent Bar Code Reading Performance

Great performance to read allmost all types of
1d /2d bar code such as QR code, Datamatrix code, Aztec, Maxicode, etc. whatever is read from paper or from a phone screen.



Integration



We provide 3D-Drawing, integration Guide which support your easy and quick integration work with your terminals.

Contact our sales people to get the full documents.









Integration Accessories



To facilitate our customer integration, we provide Screws, Flat cables, Connectors, USB/RS232 EVK (We also call it development kit board) and their schematic. But they are all optional, you can tell our sales people do you need them or not when you place order.







Control the barcode scan module by commands



For example, we can control the scanner's read/illumination... by sending commands to the scanner. We provide a detailed introduction to let you know how to do the command control. Ask our people to get full documents.

















Setting Codes Programming



To program/ setup the scanner module, you can just simply do it by setting codes from the User manual we provide. Remember to read the "Enter setup" code when you begin to setup. Please ask our salespeople for the full detailed user manual.









Tech Specs

Performance

Image Sensor

RT218-SR/RT218-SD: 640 * 480 CMOS

RT218-ER/RT218-HD: 720 * 1280 CMOS

Illumination

Aiming

White LED

Cross laser





Bar codes types

2D

PDF417, QR Code, Data Matrix, Aztec, Maxi code

1D

EAN-13, EAN-8, UPC-A, UPC-E, Code128, Code 39, Coda bar, UCC/EAN

128, RSS, ITF-14, ITF6, Standard 2 of 5, Matrix 2 of 5, Industrial

2 of 5, Plessey, MSI Plessey, Code 11, Code 93, etc.

Resolution

For 2D: ≥5mil, 1D: ≥5mil, (differ from different type bar codes)

Scan Mode

Sense mode, Continuous mode, Command trigger

Scan Angle

Roll: 360°, Pitch: ±55°, Skew: ±55°

Field of View

Horizontal 42°, Vertical 32°

Min. Symbol Contrast

25%

Mechanical/ Electric

Interface

TTL-232 by itself; USB or RS232 by EVK board

Dimensions

23.5(W)×16.32(D)×6.8(H) mm (max.)

Weight

3g

Notification

Beep, LED indicator

Operating Voltage

3.3VDC + 5%

Current @ 3.3VDC

Trigger mode:  operating: 160mA; standby: 25.5mA; peak (power on): 360mA

Sense mode:  operating: 160mA; standby: 124.5mA; peak (power on): 360mA

Environmental

Operating Temperature

-30℃ to 70℃

Storage Temperature

-40℃ to 80℃

Humidity

5% to 95% (non-condensing)

Accessories (optional)





Development kit board:



USB



USB virtual Com or USB-HID; equipped with a trigger button, beeper, and USB interfaces.

RS232

(optional)

DB9 RS232 kit board; equipped with a trigger button, beeper, and RS232 interface, power adapter

Four Versions Available

Version

Description

Example

RT218-SR

Standard Range:

The standard scanner

QR Code(20mil):

Readable distance: 35-230mm

RT218-ER

Extended Range:

Able to read bar codes from a longer distance

QR Code(20mil):

Readable distance: 50-400mm

Code128(30mil): 200-1300mm

RT218-SD

Short Distance:

Able to read bar codes from a short distance

Data Matrix (4*4mm):

Readable distance: 22-70mm

QR Code(4*4mm):18-75m

RT218-HD

High-Definition:

It can read high-density bar codes

High-density barcode that is hard to read by usual scanners

Typical Depth of Field



RT218-SR

RT218-SD

RT218-ER

RT218-HD

Code128 (5mil)

40-210mm

30-65mm

130-350mm

60-170mm

Code 39(5mil)

40-220mm

35-70mm

100-360mm

65-200mm

PDF417(5mil)

60-130mm

20-70mm

120-230mm

60-190mm

Data Matrix(10mil)

50-90mm

30-55mm

130-230mm

85-120mm

QR Code(20mil)

35-230mm

35-120mm

50-400mm

30-80mm
