OEM 2D and QR Barcode Reader Module: RT214

—Super Small OEM 2d and QR barcode scanner module

The RT214 is a new 2D scanner module with state-of-the-art technology, it has excellent reading performance. It can read most 1D & 2D barcodes such as QR codes, PDF417 codes, Data Matrix, etc. It reads well either from the LCD screen or paper.



Specification

✔️1D&2D barcode (QR, DM, etc)

✔️Automatic reading & Command trigger

✔️Tiny size: 21.3mm*9mm*7mm

Connection

TTL-232

USB EVK kit✹

RS232 EVK kit✹

(✹Optional)

Features

Low power consumption

Super fast barcode reading from paper&screen

Windows, Linux, Android, Arduino, Raspberry PI

Application: POS, Locker, Handheld device, Self-service terminal



Certificate

CE, FCC, RoHS, REACH, California-Proposition-65, IEC62471

Contact Us Now
Order Sample Now!



 Super Small OEM 2D and QR barcode scanner module

The RT214 is outstanding for its ultra-small design, low power consumption, and good performance for reading poorly printed 1D/ 2D bar codes, bar codes on the low brightness LCD screen, as well as on-screen bar codes even if it is covered with protective film.

It's ideal for devices with small space inside, for example, POS, PDA, or other kinds of portable devices, but of course, can be used for big devices such as kiosk terminals.













Integration

We provide 3D-Drawing, integration Guide which support your easy and quick integration work with your terminals.

Contact our sales people to get the full documents.









Integration Accessories



To facilitate our customer integration, we provide Screws, Flat cables, Connectors, USB/RS232 EVK (We also call it development kit board) and their schematic. But they are all optional, you can tell our sales people do you need them or not when you place order.







Control the barcode scan module by commands



For example, we can control the scanner reading / illumination... by sending commands to the scanner. We provide a detailed introduction to let you know how to do the command control. Ask our people to get full documents.

















Setting Codes Programming



To program/ setup the scanner module, you can just simply do it by setting codes from the User manual we provide. Remember to read the "Enter setup" code when you begin to setup. Please ask our salespeople for the full detailed user manual.











Solution

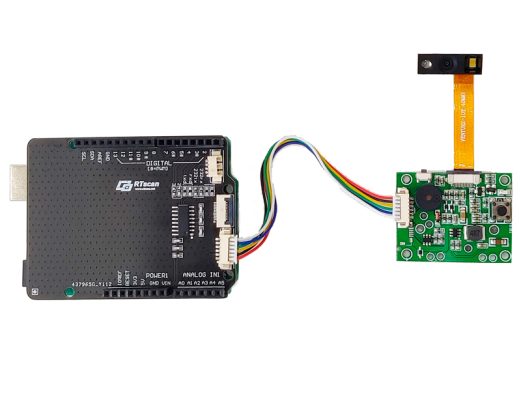

  • Arduino Barcode Scan Engine Solution

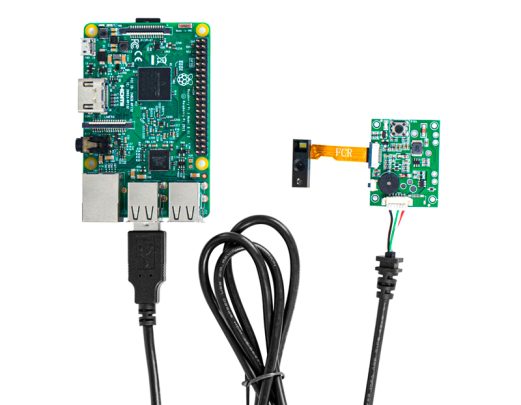

  • Raspberry Barcode Scanners Solution

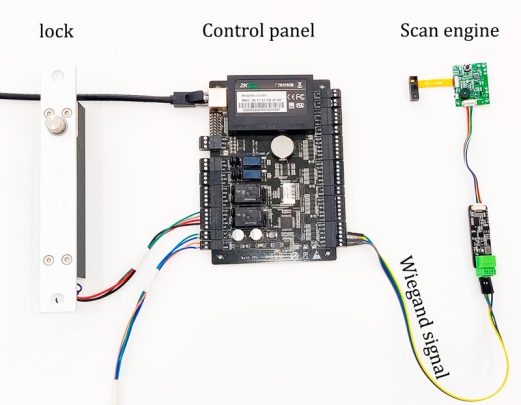

  • Wiegand Barcode Scan Engine Solution

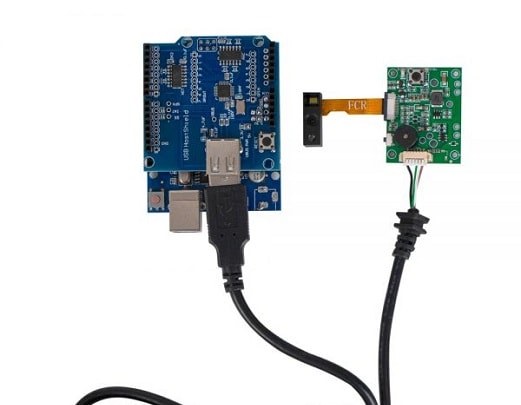

  • Arduino USB Host Barcode Scan Engine Solution





Tech Specs

Performance

Image Sensor

640 * 480 CMOS

Illumination

Aiming

White LED

Red LED 625nm

Symbologies

2D

PDF417 , QR Code, Data Matrix

1D

EAN-13, EAN-8, UPC-A, UPC-E, Code128, Code 39, Codabar, UCC/EAN 128, ITF-14, ITF6, Standard 2 of 5, Matrix 2 of 5, Plessey, MSI Plessey, Code 11,Code 93, etc.

Resolution

≥3mil  (differ from different type bar codes)

Typical Depth of Field

EAN-13

60-350mm (13mil)

Code 39

40-150mm (5mil)

PDF417

50-125mm (6.7mil)

Data Matrix

45-120mm (10mil)

QR Code

30-170mm (15mil)

Scan Mode

Sense mode, Continuous mode, Command trigger

Scan Angle

Roll: 360°,  Pitch: ±60°,  Skew:±60°

Field of View

Horizontal 42°,  Vertical 31.6°

Min. Symbol Contrast

25%

Mechanical/

Electric

Interface

TTL-232;   USB

Dimensions

21.3(W)×9.0(D)×7.0(H) mm (max.)

Weight

1.2g

Notification

Beep, LED indicator

Operating Voltage

3.3VDC + 5%

Current @ 3.3VDC

Operating : 138mA(typical);  Idle: 11.8mA

Environmental

Operating Temperature

-20℃ to 55℃

Storage Temperature

-40℃ to 70℃

Humidity

5% to 95% (non-condensing)

Accessories

(optional)

Development kit board:

 It is equipped with a trigger button, beeper, RS232 interface or USB interface (HID & COM).

Ask A Sample To Test Now!
