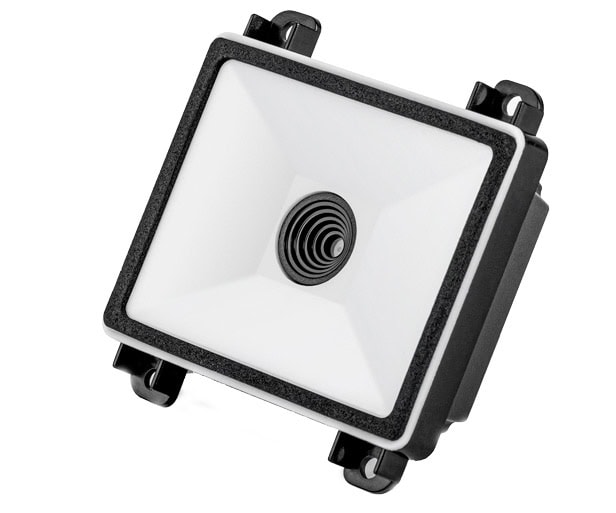

Fixed-mount embedded & Kiosk Barcode Scanner: RT830C

—The latest version of embedded kiosk barcode scanner in 2021



Features

  • Detect and read bar code automatically and sensitively
  • Fixed mount design for embedded use
  • Large field of view – user-friendly
  • Can read bar codes from screen and paper
  • Support most 1D and 2D bar codes

Connection

  • TTL-232
  • USB ✹
  • RS232 ✹

(✹Optional)

Certifications

  • CE, FCC, ROHS, REACH
Contact Us Now!
Order Sample Now!



Fixed-mount embedded & Kiosk Barcode Scanner

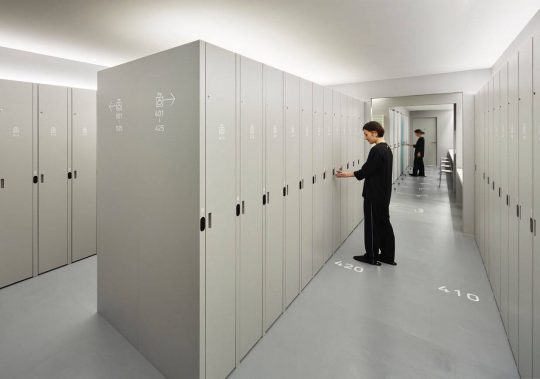

RT830C is designed for all kinds of embedded kiosk use. It is suitable for ATMs, ticket terminals, turnstiles, lockers, queuing equipment, self-service inquiry terminals, and medical devices.

It can decode almost all types of 1D/2D bar codes, including Aztec, MaxiCode, QR, Data Matrix, PDF417, EAN code, etc. It has also been optimized to read bar codes from a mobile phone.

Thanks to its unique design, you can embed the scanner under glass, ensuring dust- and rain-proof for outdoor and indoor use.

Support sense mode detects and reads bar code automatically and builds USB, RS232, and TTL-232 interfaces.









Video Introduction

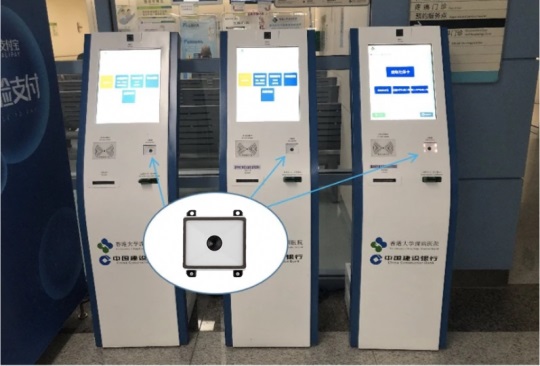

Application In Kiosks/ Self-service Terminals In Hospital



Read 1D 2D QR codes for payment, or for result sheet/report sheet printing (scan the Patient number bar code or Hospitalization number bar code or Reservation number bar code and the kiosk print the sheet automatically)







Application in transportation / Bus ticketing system


RT830C has been widely used for the public transportation system in China. Its high speed reading and good performance in both usual and dark environments make it welcome for bus ticketing, metro station ticketing, etc.

The passenger shows their payment QR code in their cellphone screen, and the bar code reader detects and reads the QR code automatically.





Setting Codes Programming



To program/ setup the scanner module, you can just simply do it by setting codes from the User manual we provide.

We provide rich programming codes for you to do many kinds of settings / user-define.

Please ask our sales people for detailed documents.







Integration



We provide a 3D drawing integration guide that supports easy and quick integration work with your terminals.

Contact our salespeople to get the full documents.

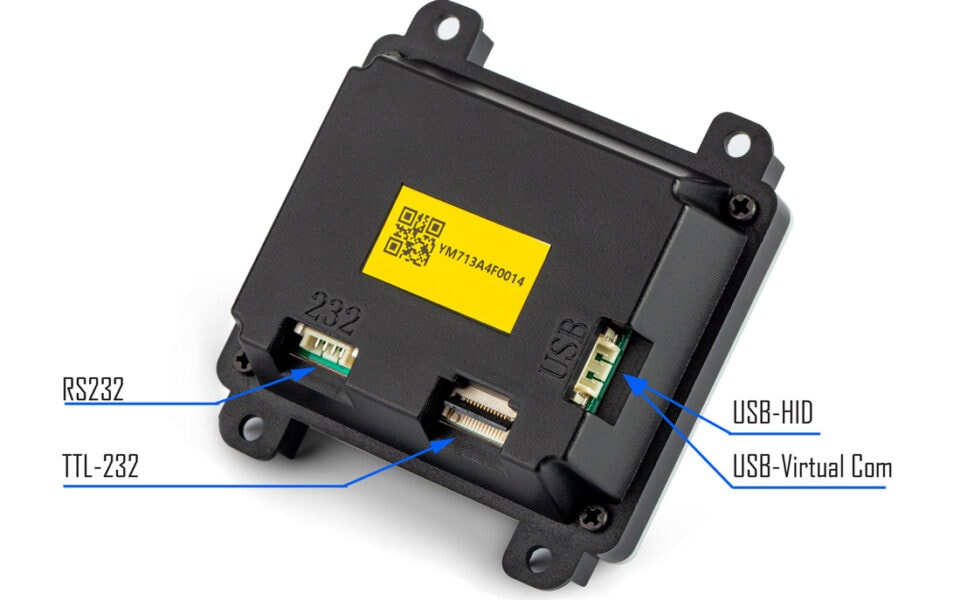

Interfaces

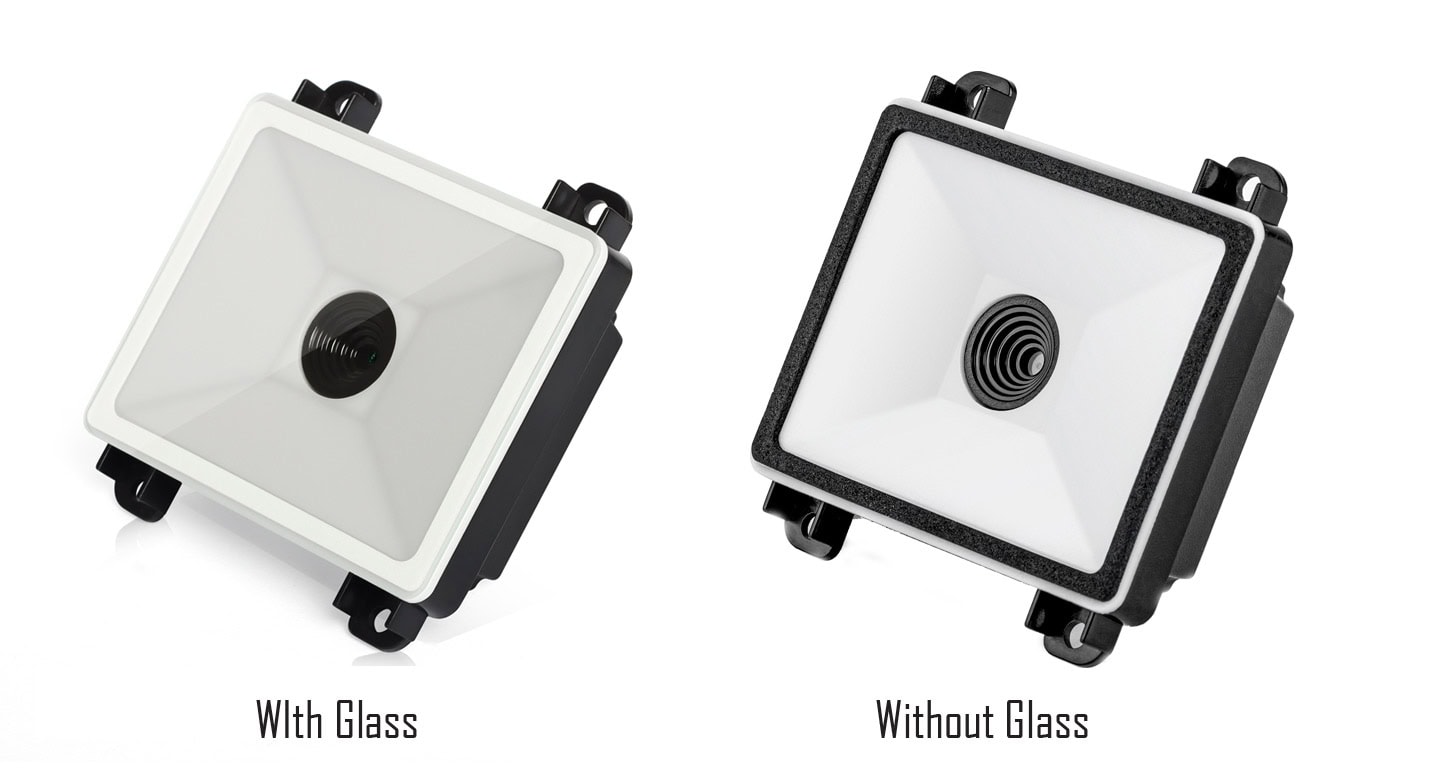

Two versions available: With or Without glass



Technical Specification

Performance
Image Sensor640 pixels (H)x 480 pixels (V)
Illumination AimingIllumination: 5000K LED
Symbologies2DPDF417, MicroPDF417, Data Matrix, QR Code, Aztec etc.
1DUPC, EAN, Code 128, Code 39, Code 93,  Matrix 2 of 5, Codabar, Interleaved 2 of 5 ,etc
Minimum Resolution≥ 3.9 mil
Typical Depth of FieldUPCA5-110mm (13mil)
QR Code0-150mm (20mil)
PDF4170-50mm (6.88mil)
Data Matrix0-50mm (10mil)
Performance may be impacted by bar code quality and environmental conditions
Scan ModeSense mode, Command trigger
Scan AngleRoll: 360°,  Pitch: ±65°,  Skew:±60°
Field of View72° (H) x 57° (V)
Motion Tolerances>2m/s
FPS100FPS
Print Contrast:20% minimum reflective difference

Mechanical/Electric
InterfaceUSB,  RS232, TTL232
Dimensions65mm x 61.2mm x 22mm
Weight33g
NotificationBeep,  Green LED indicator
Voltage3.3-5 VDC
CurrentOperating: 200mA.   Standby: 90mA.   Peak: 300mA.

Environmental
Operating Temperature-40℃ to 70℃
Storage Temperature-50℃ to 85℃
Humidity0% to 95% relative humidity,non-condensing
Drop/Shock Withstands 10Gs 0.06”double amp
Ambient Light Immunity0-100,000 Lux.
