Ultra Thin Fixed Mount Barcode Scanner：RT242
—The RT242 series fixed mount barcode scanners are outstanding at super thin design
Features
✔️ Compact and Super Thin Design
✔️ Easy Mounting Design
✔️ Excellent Bar Code Reading Performance
✔️ Three Versions Available for Different Distance
✔️ Application: Vending machine, Locker, Express cabinets, Ticket gates…
Connection
Certificate
CE、FCC、ROHS、
The RT242 series fixed mount scanners are outstanding at super thin design: only 2cm in thickness. In addition, they are also easily mounting designed, with a bracket available optionally; and also powered with a high-performance scan engine inside, which enables them to read most 1D and 2d bar codes excellently.
Suitable for all kinds of terminals:
Vending machines, Lockers, Express cabinets, Ticket gates, and other types of self-service terminals.
In order to meet the different needs of different applications, we developed the RT242 series with three versions in terms of reading distance: RT242-SR is a standard range barcode scanner, RT242-SD is short distance barcode scanner, and RT242-ER is a long-range/extended range barcode scanner.
Video demo for RT242-ER
Video demo for RT242-SD
Compact and Super Thin Design
The miniature size, lightweight facilitates the integration of the barcode scanner RT242 into a wide variety of thin-and-light equipment.
Easy Mounting Design

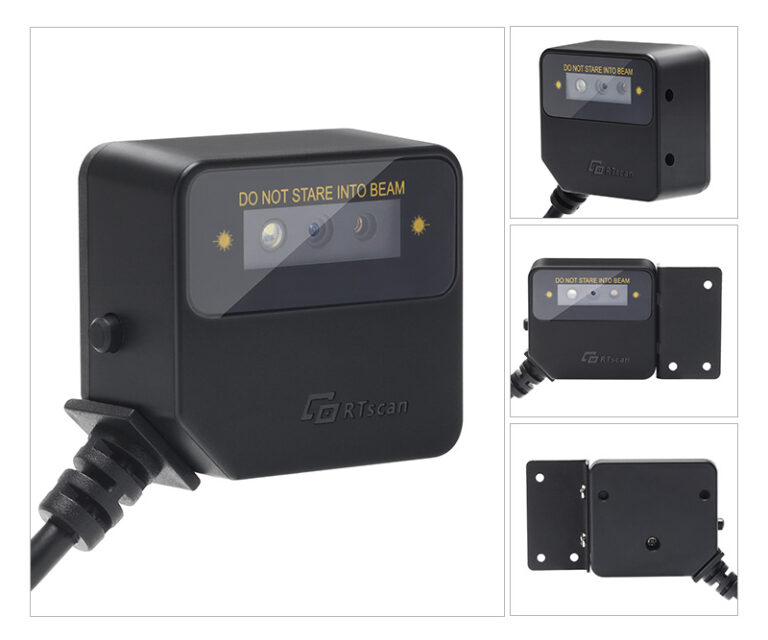

The RT242 comes with an (optional) mounting
bracket which enables you to embed the scanner
with your devices very easily. It facilitates your
design and saves your development time.
Two Housings Optional
In order to facilitate various embedding needs, we have developed two different shells for the RT242 series to choose from. The advantage of choosing type B is that you can only expose the scanning window to the surface of the device.
Three Versions Available for Different Distance
RT242 includes 3 versions:
RT242-SR: standard range barcode scanner.
RT242-SD: reads barcodes from a short distance.
RT242-ER: reads barcodes from a longer distance.
Excellent Bar Code Reading Performance
Great performance to read most types of common 1D and 2D bar codes from paper and phone screens. This scan engine can also easily read even poor-quality barcodes: damaged barcodes, low-contrast barcodes, torn barcodes, and warped or wrinkled barcodes.
Setting Codes Programming
To program/ setup the scanner module, you can just simply do it by setting codes from the User manual we provide.
We provide rich programming codes for you to do many kinds of settings / user-define.
Please ask our sales people for detailed documents.
Integration
We provide 3D-Drawing, integration Guide which support your easy and quick integration work with your terminals.
Contact our sales people to get the full documents.
Specification
| Three Versions Available | ||||
| Version | Description | Example | ||
| RT242-SR | Standard Range: For usual/ common distance barcode reading | EAN-13 60-350mm (13mil) | ||
| Code 39 40-150mm (5mil) | ||||
| PDF417 50-125mm (6.7mil) | ||||
| Data Matrix 45-120mm (10mil) | ||||
| QR Code 30-170mm (15mil) | ||||
| RT242-ER | Extended Range: Able to read bar codes from a longer distance | EAN-13 105mm-680mm | ||
| Code 39 120mm-260mm(5mil) | ||||
| Code 39 65mm-800mm(20mil) | ||||
| Code 128 115mm-1400mm(40mil) | ||||
| QR Code 80mm-250mm (15mil) | ||||
| RT242-SD | Short Distance: Able to read bar codes from a short distance | PDF417 25mm-45mm(6.7mil) | ||
| Code 39 25mm-50mm(5mil) | ||||
| Data Matrix 25mm-45mm (10mil) | ||||
| QR Code 20mm-60mm (15mil) | ||||
| Performance | ||||
| Image Sensor | 640 * 480 CMOS | |||
| Illumination | White LED | |||
| Aiming | RT242-SR/RT242-SD: Red LED 625nm; RT242-ER: 650nm Laser | |||
| Symbologies | 2D | PDF417, QR Code, Micro QR, Data Matrix | ||
| 1D | EAN-13, EAN-8, UPC-A, UPC-E, Code128, Code 39, Codabar, UCC/EAN128, ITF-14, ITF6, Standard 2 of 5, Matrix 2 of 5, Industrial2 of 5, Plessey, MSI Plessey, Code 11, Code 93, etc. | |||
| Resolution | 3mil(1D) , 6.7mil(2D) | |||
| Field of View | RT242-SR | RT242-SD | RT242-ER | |
| Horizontal 42° | Horizontal 68° | Horizontal 28° | ||
| Vertical 31.6° | Vertical 51° | Vertical 21° | ||
| Scan Angle | RT242-SR | RT242-SD | RT242-ER | |
| Roll: 360°, Pitch: ±60°,Skew:±60° | Roll: 360°, Pitch: ±50°,Skew: ±50° | Roll: 360°, Pitch: ±60°, | ||
| Skew: ±60° | ||||
| Scan Mode | Sense mode, Continuous mode, Command trigger | |||
| Min. Symbol Contrast | 25% | |||
| Mechanical/Electric | ||||
| Interface | USB or RS232 | |||
| Dimensions | 40.65(W)×20(D)×35.7(H) mm (max.) | |||
| Notification | Beep, LED indicator | |||
| Operating Voltage | 5 VDC + 5% | |||
| Current @ 3.3VDC | Trigger mode: operating : 160mA; standby: 25.5mA; peak (power on): 360mA | |||
| Sense mode: operating : 160mA; standby: 124.5mA; peak (power on): 360mA | ||||
| Operating Temperature | -20℃ to 55℃ | |||
| Environmental | ||||
| Storage Temperature | -40℃ to 70℃ | |||
| Humidity | 5% to 95% (non-condensing) | |||
