Passport Scanner: IDE500 V1.0

High-Performance Multi-Function Passport & ID Scanner

Features

Fast: around 2 seconds for 3 types of images (color, IR, UV)+OCR or barcode
Support OCR-B & MRZ code reading
Support 2D QR and PDF417 barcode reading
USB-powered, no need extra power supply

Connection

USB (for Data and Power)

Certificate

CE、FCC、ROHS

Maximize Project Margins with the IDE500

The IDE500 is a cutting-edge passport and ID scanner engineered for high-efficiency identity verification in demanding environments. It is the ideal choice for PMS System Integrators and Banking identity verification solution providers looking to enhance service quality while securing a competitive edge.

Core Technical Advantages

The IDE500 delivers document authentication and data capture through its unique multi-spectrum imaging capabilities:

Tri-Spectrum Imaging: Simultaneously captures images under Visible Light (Color) for full page backup, Infrared Light (IR) for high-accuracy OCR reading, and Ultraviolet Light (UV) for security printing inspection and anti-counterfeiting checks.
Multi-Code Recognition: Ensures rapid, accurate processing of identity documents by reading the ICAO 9303 OCR-B Machine Readable Zone (MRZ) and various 1D and 2D barcodes.

Target Applications

The speed, accuracy, and reliability of the IDE500 make it essential for:

Hospitality/PMS Systems: Expediting guest check-in processes and improving customer experience.
Banking & Finance: Meeting stringent KYC (Know Your Customer) and anti-fraud requirements.

Why Partner with RTscan?

For our partners—System Integrators and Solution Providers—the IDE500 offers a clear path to success:

We combine premium, reliable performance with a highly competitive price structure. This powerful combination enables you to deliver a superior product to your clients while achieving higher project margins and strengthening your market position.

Global Partnership Invitation

RTscan is actively seeking motivated System Integrators (SI) and Distributors worldwide to establish strategic partnerships for the IDE500 scanner.

Don’t hesitate to contact us now to discuss distribution terms, receive detailed product specifications, and start unlocking new business opportunities together.

Video demo of IDE500 Passport Scanner

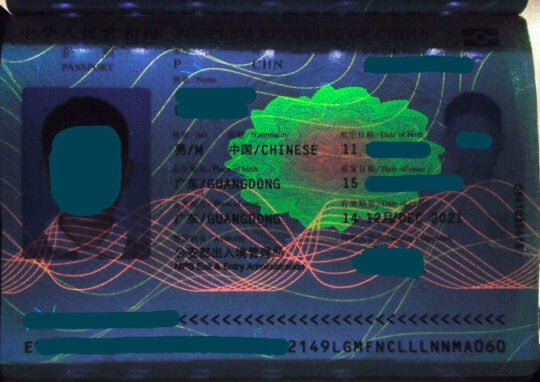

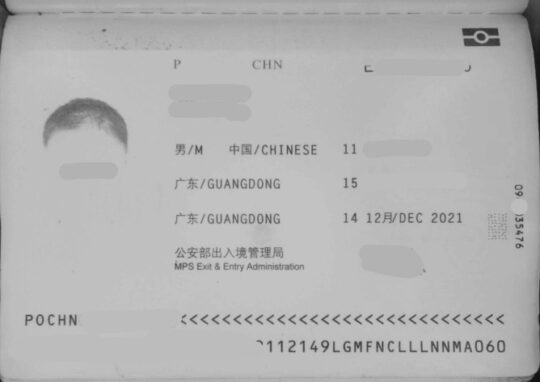

Color, IR, UV image capturing

Color for full page image backup, IR for accurate OCR reading, UV for security printing and authenticity checking

Below real images captured by IDE500

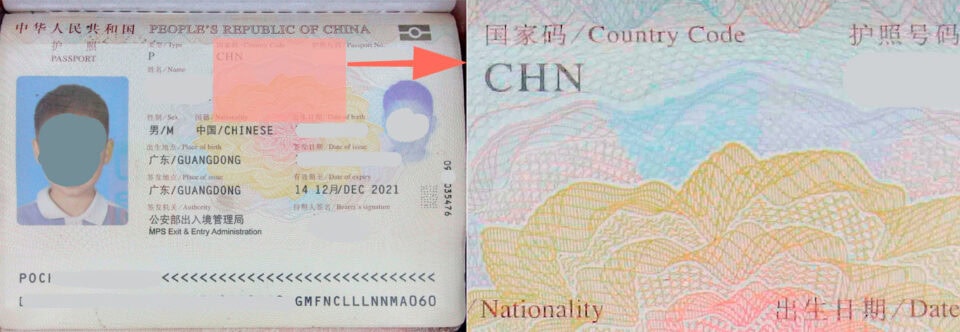

Image resolution

The IDE500 is equipped with a 5.0-megapixel image sensor. The following image demonstrates the clarity when locally magnified.

OCR

Supports OCR for ICAO9303 MRZ (Machine-readable zone) td1, td3

Barcode Reading

Supports barcode reading from ID & Passport documents

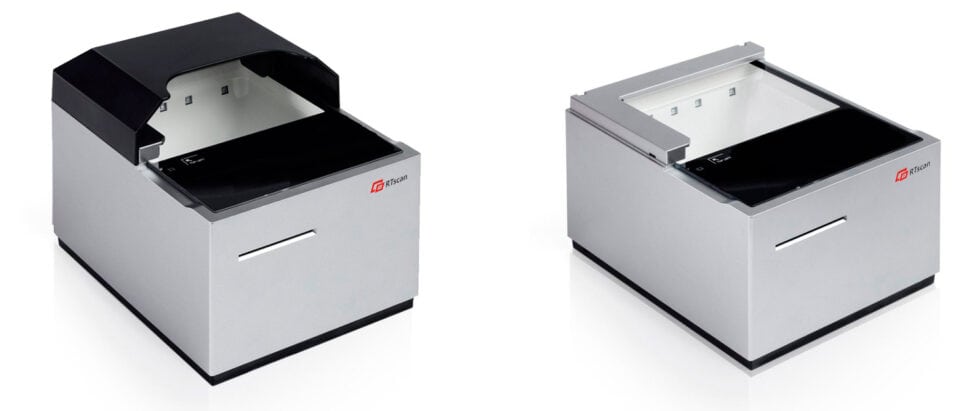

Workable with & without the top cover

The IDE500 is suitable for both desktop and self-service terminal embedded use.

The top cover is optional; with it, the image quality parameters, such as brightness, contrast, and color, will be more consistent, while without it, the scanning operation will be more convenient.

Dimension

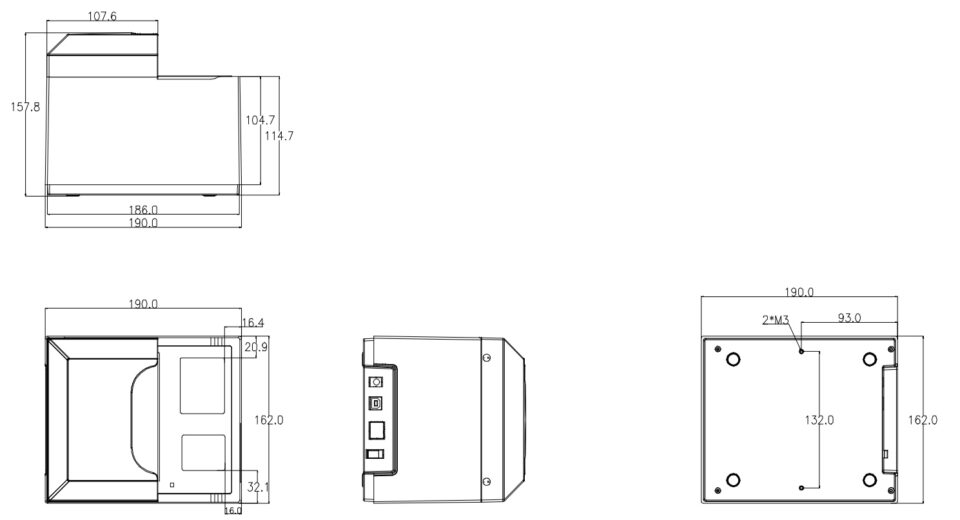

IDE500 dimension drawing with top cover

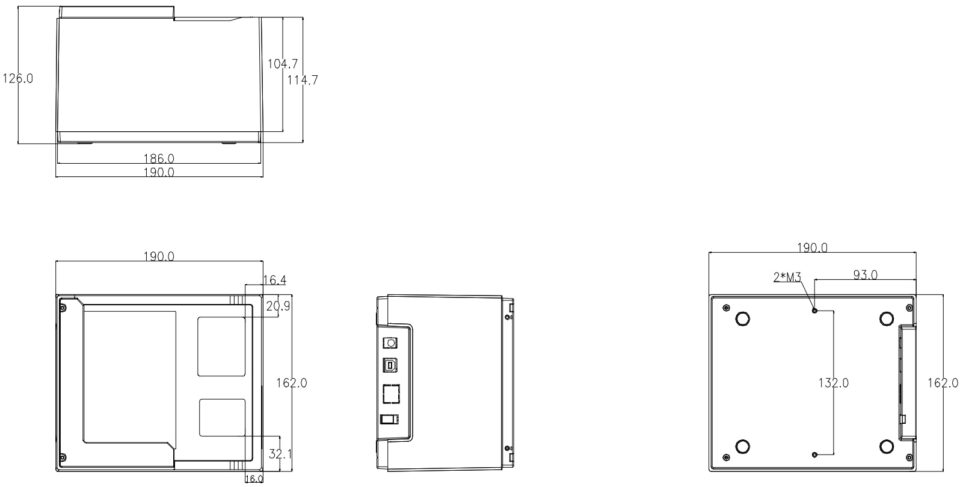

IDE500 dimension drawing without top cover

Applications

Hotels
Tax refunds & currency exchange
Immigration
Banks
Government agencies
Self-service kiosks…

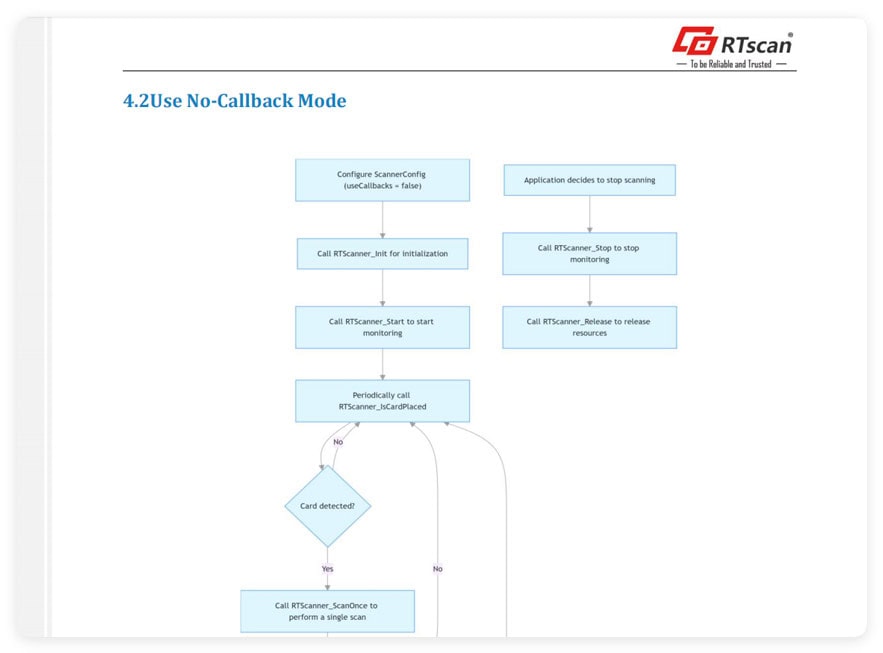

SDK/ System Integration

We provide SDK/API for system integration.

Demo & Sample code：

C++
Python

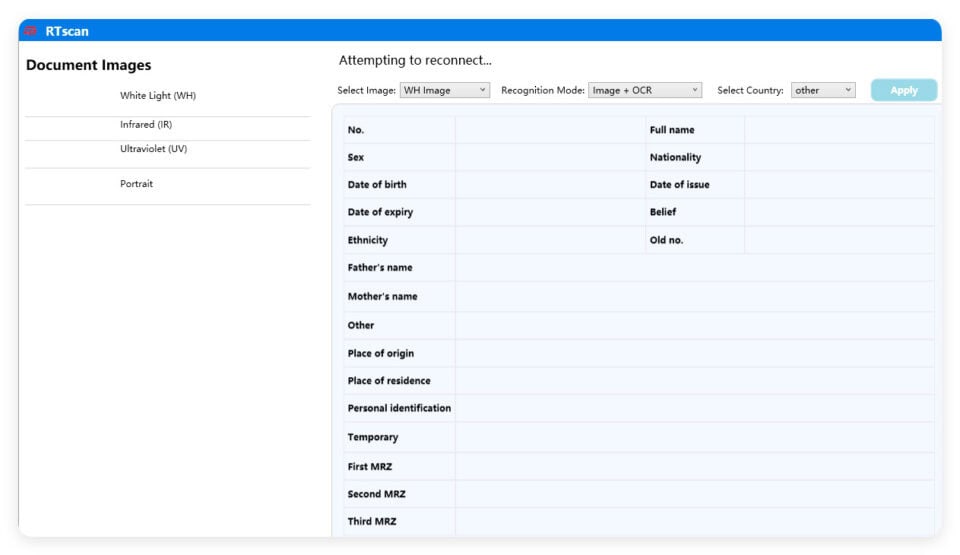

Demo interface:

Speciﬁcation

Image resolution	>500dpi
Sensor/lens	8 Megapixel sensor
Illumination/ Light source	White (for color image) IR – Infrared UV – Ultra Violet (Optional)
Symbologies	OCR-B/ MRZ	ID &Passport documents: ICAO9303 OCR-B&MRZ
	1D code	EAN-13, EAN-8, UPC-A, UPC-E, UPC-EAN, Code 39, Code 128, Code 93, Codabar, EAN-13, ITF,
	2D code	PDF417 in ID documents, QR Code, Data Matrix, AZTEC, Maxicode
Scan Mode	Automatic mode: automatic card placement detection and read; Manual trigger mode
Image Scan speed	Around 1s for single type image, around 2-3s for Color+ IR+UV (a little different with different computer)
Interface	USB 2.0 data transfer and USB powered
Power supply	USB 5V-1A, no external power needed
Dimensions	18.4(W)×15.7(D)×15.5(H)/cm with top cover 18.4(W)×15.7(D)×12.3(H)/cm without top cover
Weight	900g
Notification	Beep, LED indicator
Window	Anti-scratch glass
Driver	No driver is required.
Software development kit	Supports: Pick up name, ID number, etc. from MRZ data. 2. Decode bar codes. 3. Get original or cropped images. The SDK is currently based on Windows only.
Applications	Hotels, foreign currency exchange offices, immigration, banks, government agencies, hospitals, etc.
