2D scanner: fixed mount barcode scanner: RT230H

blank

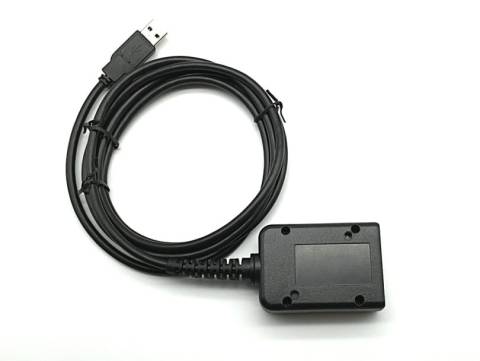

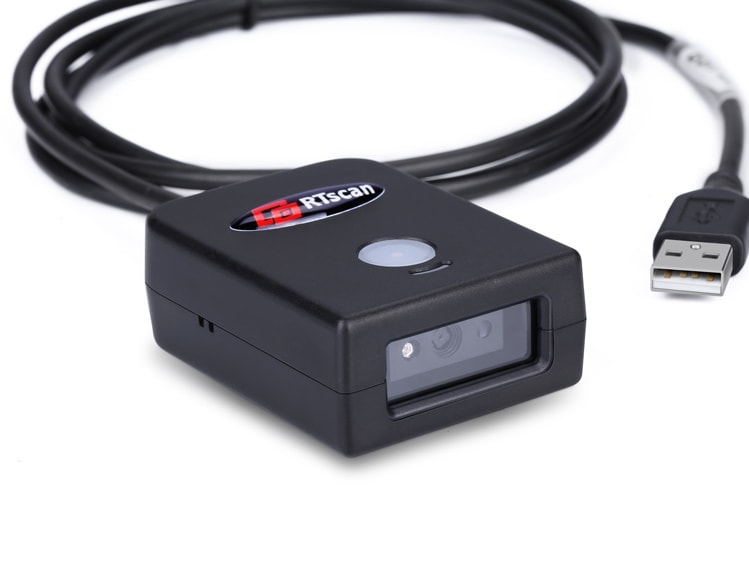

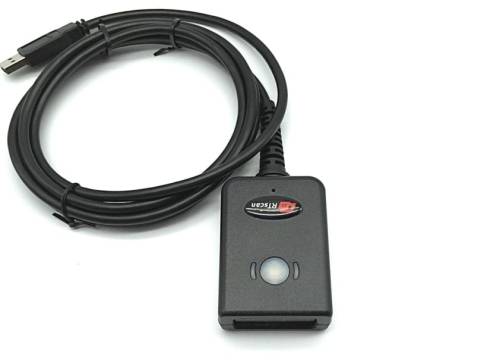

Fixed mount barcode scanner » OEM barcode scanner for Kiosk ATM : RT230H



Fixed mount barcode scanner that designed for kiosk, ATM and others self-service terminals embedded use or to be fixed in wall. It's small compact and with USB or RS232 interface and fix screw holes, it's easy to be fixed and embedded.

Features

  • 2d Fixed mount barcode scanner
  • Compact, easy to be embedded, Fixed mount design for kiosks use
  • USB or RS232 interface directly, no need to pay much time on system integration program
  • Supports automatically detect and read barcode,  command trigger mode and others trigger mode.
  • Support most of 1D/2D code decoding, QR code, PDF417, Data matrix, Code 39, code 93
  • With high performance processing chip inside, Readable either from LCD screen or from paper
  • Easy to be programmed by setting codes
  • Flexible with customization



blank

Video Demo





Fixed Mount Barcode Scanner » OEM Barcode Scanner For Kiosk ATM : RT230H


The RT230H is a OEM 2D fixed mount barcode scanner, with fixed mount and compact design, it's suitable for all kinds of Kiosk, ATM, cket terminal, medical device for embedded use.

Supports sense mode( detect and read bar codes automatically ), continuous mode and trigger mode, with interface USB-HID, USB-Virtual Com, and RS232 .

Readable most 1D barcode and 2D barcode such as QR code, PDF417 code, Data Matrix, Aztec Code...and also with high performance for reading codes from phone screen.

blank

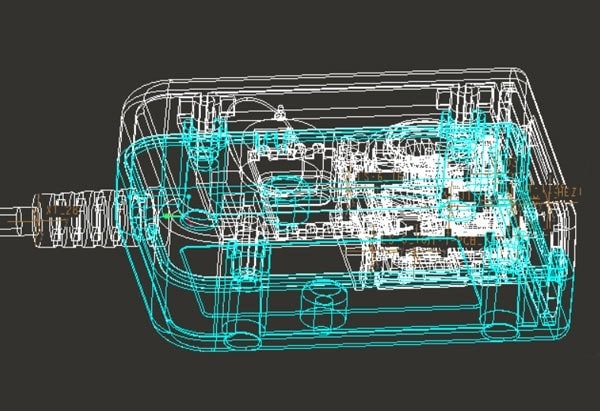

Integration

We provide 3D Drawing for your easy integration design, please contact our people to get the documents.

blank

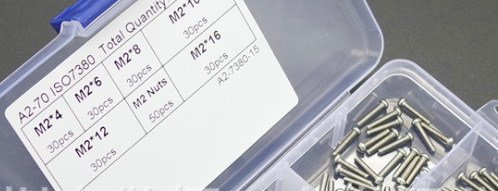

Integration Accessories

We provide the screws together with product in order to facilitate your  integration.

blank

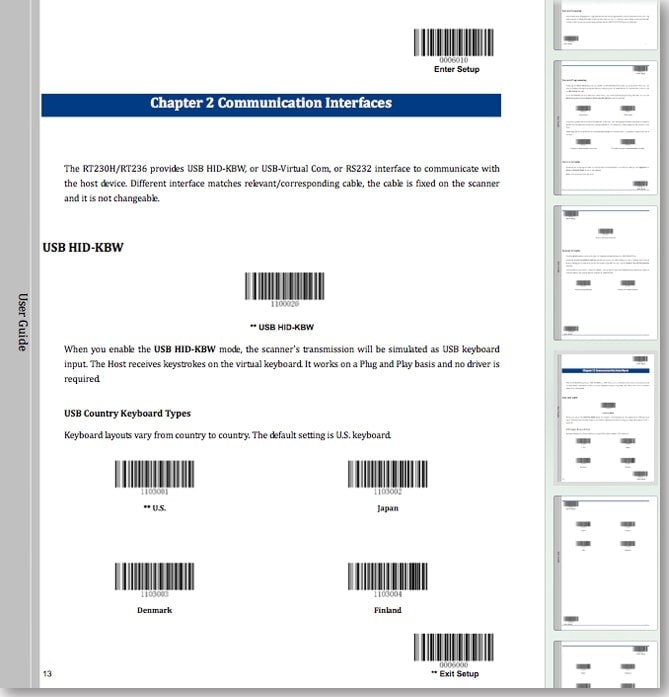

User Manual

blank

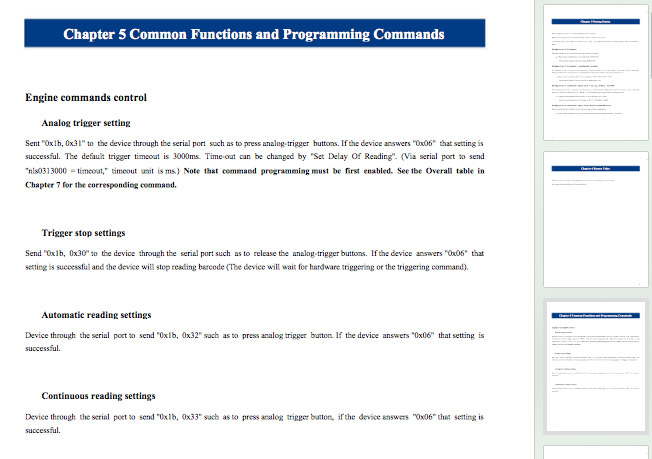

Command Program/ Command Control

blank



Specification

Item name:Fixed mount barcode scanner RT230H
Dimensions (LxWxH)60mm*45mm*22.5mm
Weight100 g

Electrical



Input Voltage5 VDC
Operating Power210mA @ 5VDC
InterfacesUSB HID-KBW, USB COM Port emulation , RS232 (different interface matches corresponding cable, the cable is fixed on the scanner and it is not changeable.)


Environmental



Operating Temperature-20°C to 50°C
Storage Temperature-40°C to 80°C
Humidity5% to 95% relative humidity, non-condensing
Light Levels0 to 100,000 lux (natural light)


Performance



Scan PatternArea-Imaging
Sensor648*480 pixels CMOS
Field of ViewHorizontal 44°; Vertical: 33.2°
Symbol Contrast30% minimum reflectance difference
Pitch, Skew, Roll

±40°, ±40°, 360°

Resolution≥ 5mil
Decode Capability1D:  Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14, RSS-Limited, RSS-Expand)

2D:  PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140)

Decode range




Code 39(5mil)

30mm-180mm
EAN-13 (13mil)45mm-380mm
PDF417 (6.67mil)30mm-125mm
QR code (15mil)25mm-165mm
Warranty1 year factory warranty

Performance may be impacted by bar code quality and environment conditions.



Contact Us To Ask Sample For Test Now!


Send



Not Suitable? Have a look others similar fixed mount type readers:




  • blank

    Small OEM 2D fixed mount barcode scanner-RT235

    Small OEM 2D fixed mount barcode scanner-RT235

    Details
  • blank

    Bus & Metro station 2D barcode scanner-RT820

    Bus & Metro station 2D barcode scanner-RT820

    Details
  • blank

    Fixed Mount Document Reader: IDE237

    Fixed Mount Document Reader: IDE237

    Details
  • blank

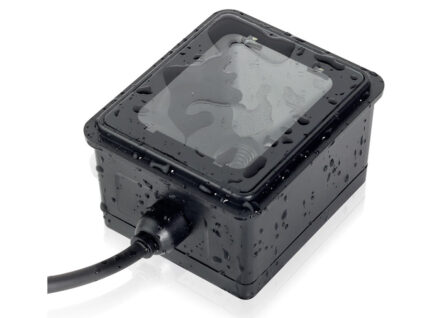

    Embedded 2d Barcode Reader: RT870
