Mobile computer android terminal with printer RT940

RT940 is all in one Mobile computer android terminal with printer, MSR reader, contact and contactless IC card reader, barcode reader, WI-FI...

It combines the functions of financial POS and Android PDA, with 5 inch large touch screen, MSR reader, contact and contactless IC card reader, thermal printer, barcode reader, WI-FI, Bluetooth, 3G, GPS, support traditional payment, NFC payment and barcode payment.

  • Multiple payment solutions, supports traditional payment, NFC payment, 2D barcode payment
  • Customized Android OS ( Android 4.3) + 2 PSAM slots , meeting the strict requirements of financial regulations and government agencies
  • 7 band WAN radio with quick speed data access and 802.11b/g/n WiFi
  • Advanced 5” HD (720 x 1280) capacitive screen, Industrial grade sensitivity, workable with using gloves and wet fingers
  • Optional 1D or 2D scanner engine,
  • 5MP camera with flash and auto focus
  • Thermal printer

  • Description
  • Tech Specs
  • Mobile computer android terminal with printer and barcode scanner

    RT940 is a portable multiple function mobile computer android terminal / “PDA + POS” all in one terminal, It combines the functions of financial POS and Android PDA, with 5 inch large touch screen, MSR reader, contact and contactless IC card reader, thermal printer, barcode reader, WI-FI, Bluetooth, 3G, GPS, support traditional payment, NFC payment and barcode payment. With the advantage to provide accurate calculation, safe payment collection, data transmission and access control information, it is widely used in the application of Table-side order entry / Mobile Point of Sale (POS), Curbside check-in, Inventory and asset management, Ticket scanning, E-commerce, Retail Chain, Financial insurance, O2O application, Logistics Express, Access control and some other areas.

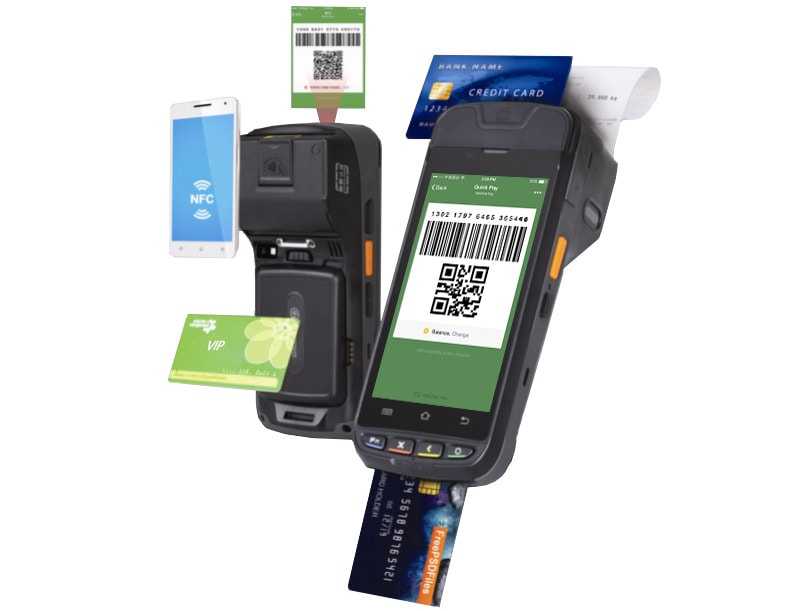

    Android-smart-pos-point-of-sales-terminal-RT940

    Features and Benefits
    1. Multiple payment solutions:  3-track MSR reader , Smart chip reader and contactless reader with EMV certification Supports NFC payment, 2D barcode payment Membership, rewards point
    2. Enterprise security:  Customized OS with enhancements of security which changes Android from a consumer OS to an enterprise platform Supports 2 PSAM slots , meeting the strict requirements of financial regulations and government agencies
    3. Voice and data connection:  7 band WAN radio with quick speed data access 802.11b/g/n WiFi
    4. Advanced capacitive screen:  5” HD (720 x 1280) Industrial grade sensitivity, workable with using gloves and wet fingers
    5. Powerful data collection: Optional 1D or 2D scanner engine, 5MP camera with flash and auto focus, GPS function
    6. Thermal printer:  2” quick thermal printer, 30mm paper roll, 40mm paper roll (future option)

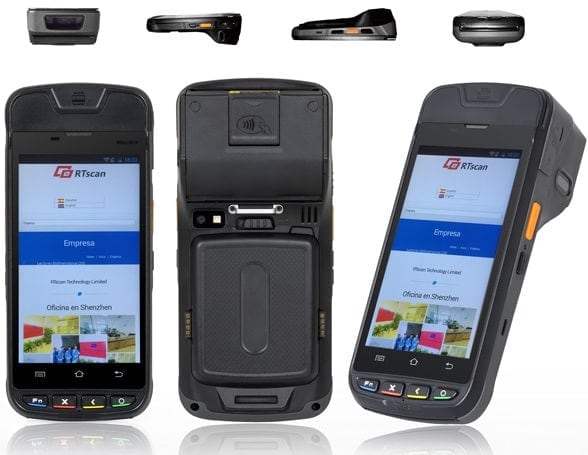

    Smart POS > Android Smart POS With Barcode Scanner, 3G, Wi-Fi...  And EMV /PCI approved.

    Physical Characteristics

    Dimensions

    185mm x 81mm x 32 mm (max 51.5mm)

    Weight

    550g

    Buttons

    Front : User define button x 1 , Cancel button x 1 , Confirm button x 1 , Clear button x 1

    Side : SCAN button x 2, The volume switch button, ON / OFF button

    Input

    Chinese/ English, and supports handwriting and soft keyboard

    Performance Characteristics

    O.S.

    Android 4.3 supports multi-language

    CPU

    Quad-Core 1.2GHz

    Display

    5.0 inch TFT-LCD HD (720 x 1280) color screen

    Panel

    Ultra sensitive capacitive touch screen, can work with gloves and wet fingers

    RAM

    1GB

    ROM

    4GB

    Barcode Scanner

    1D Laser

    Code 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5; Code 93; UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; Bookland EAN; Coupon Code; RSS-Limited; RSS-14;  RSS-Expanded

    2D CMOS

    (Optional)

    1D Symbologies: UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR, MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5 , Korean3/5, Matrix 2/5, CODE 32,CODE 93, CODE 11, Inverse 1D, GS1 DataBar, Composite Codes2D Symbologies: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse
    Postal Codes: U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal

    Radio Communication

    Wi-Fi

    802.11 b/g/n wireless communication

    Bluetooth

    Bluetooth 4.0

    WCDMA

    GSM:850/900/1800/1900 MHz
    UMTS/HSPA+: 850/1900/2100 MHz

    WCDMA+

    EVDO

    (optional)

    GSM:850/900/1800/1900 MHz
    UMTS/HSPA+: 850/1900/2100 MHz

    CDMA2000 1x, CDMA2000 EV-DO Rev 0, CDMA2000 EV-DO Rev A

    Supports BC0 (800MHz band), BC1 (1900MHz band)

    Payment

      Certification  EMV, PCI

    Magcard

    Conforms to the ISO7811, and supports triple track (tracks 1/2/3), bi-directional

    Chip Card

    Supports ISO7816 standard

    Contactless Cards(RFID)

    Supports 14443A / 14443B approved;

    Supports 10MHz~20MHz frequency, and reading access time less than 300 milliseconds

    PSAM

    Conforms to ISO7816 standard x 2

    Printer

    58mm printing paper, 203dpi / 8dot / mm;

    Printing speed: 50~70mm/s, and supports barcode printing

    30mm paper roll

    Others

    Prompting mode

    Green, red and blue LED, vibration, speaker

    Camera

    5MP back camera with LED flash and auto-focus function

    GPS

    GPS,Supports A-GPS,GNSS

    Power

    Main Battery

    Rechargeable 3.8V, 5000 mAh  lithium polymer battery pack (Typical Operation  time ≥8 hours)

    RTC Battery

    Real time clock battery

    User Environment

    Operating

    Temperature

    -10℃ ~ 50℃

    Storage

    Temperature

    -20℃ ~ 60℃

    Humidity

    5% ~ 95% (non condensing)

    Drop Durability

    1.2m

    Peripherals and Accessories

    Expansion

    Micro SD/TF x 1(a maximum of 32 GB), SIM x 1, SAM x 2

    Interfaces

    Mini USB x 1, POGO PIN x 1, 3.5mm Audio Jack x 1
